一 Netty+SpringBoot环境搭建

🌈🌈依赖


            org.springframework.boot
            spring-boot-starter-web


            org.projectlombok
            lombok
            1.18.24


            io.netty
            netty-all
            4.1.65.Final



            org.apache.logging.log4j
            log4j-core
            2.17.0


            org.apache.logging.log4j
            log4j-api
            2.17.0

🌈🌈yaml配置

server:
  port:8080
netty:
  host: 127.0.0.1
  port: 7397

下面我们分别搭建服务端与客户端

1.1 服务端

package com.shu;
import io.netty.bootstrap.ServerBootstrap;
import io.netty.channel.Channel;
import io.netty.channel.ChannelFuture;
import io.netty.channel.ChannelOption;
import io.netty.channel.EventLoopGroup;
import io.netty.channel.nio.NioEventLoopGroup;
import io.netty.channel.socket.nio.NioServerSocketChannel;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.stereotype.Component;
import java.net.InetSocketAddress;
/**
 * @description:
 * @author: shu
 * @createDate: 2023/5/7 10:27
 * @version: 1.0
 */
@Component("nettyServer")
public class NettyServer {
    private Logger logger = LoggerFactory.getLogger(NettyServer.class);
    private final EventLoopGroup parentGroup = new NioEventLoopGroup();
    private final EventLoopGroup childGroup = new NioEventLoopGroup();
    private Channel channel;
    /**
     * 绑定端口
     * @param address
     * @return
     */
    public ChannelFuture bind(InetSocketAddress address) {
        ChannelFuture channelFuture = null;
        try {
            ServerBootstrap b = new ServerBootstrap();
            b.group(parentGroup, childGroup)
                    .channel(NioServerSocketChannel.class)    //非阻塞模式
                    .option(ChannelOption.SO_BACKLOG, 128)
                    .childHandler(new MyChannelInitializer());
            channelFuture = b.bind(address).syncUninterruptibly();
            channel = channelFuture.channel();
        } catch (Exception e) {
            logger.error(e.getMessage());
        } finally {
            if (null != channelFuture && channelFuture.isSuccess()) {
                logger.info("netty server start done.");
            } else {
                logger.error("netty server start error.");
            }
        }
        return channelFuture;
    }
    /**
     * 销毁
     */
    public void destroy() {
        if (null == channel) return;
        channel.close();
        parentGroup.shutdownGracefully();
        childGroup.shutdownGracefully();
    }
    /**
     * 获取通道
     * @return
     */
    public Channel getChannel() {
        return channel;
    }
}

package com.shu;
import io.netty.channel.ChannelInitializer;
import io.netty.channel.socket.SocketChannel;
import io.netty.handler.codec.LineBasedFrameDecoder;
import io.netty.handler.codec.string.StringDecoder;
import io.netty.handler.codec.string.StringEncoder;
import io.netty.handler.logging.LogLevel;
import io.netty.handler.logging.LoggingHandler;
import java.nio.charset.Charset;
/**
 * @description:
 * @author: shu
 * @createDate: 2023/5/7 10:31
 * @version: 1.0
 */
public class MyChannelInitializer extends ChannelInitializer {
    /**
     * 初始化channel
     * @param channel
     * @throws Exception
     */
    @Override
    protected void initChannel(SocketChannel channel) throws Exception {
        // 日志打印
        channel.pipeline().addLast(new LoggingHandler(LogLevel.INFO));
        // 基于换行符号
        channel.pipeline().addLast(new LineBasedFrameDecoder(1024));
        // 解码转String，注意调整自己的编码格式GBK、UTF-8
        channel.pipeline().addLast(new StringDecoder(Charset.forName("GBK")));
        // 解码转String，注意调整自己的编码格式GBK、UTF-8
        channel.pipeline().addLast(new StringEncoder(Charset.forName("GBK")));
        // 在管道中添加我们自己的接收数据实现方法
        channel.pipeline().addLast(new MyServerHandler());
    }
}

package com.shu;
import io.netty.channel.ChannelHandlerContext;
import io.netty.channel.ChannelInboundHandlerAdapter;
import io.netty.channel.socket.SocketChannel;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import java.text.SimpleDateFormat;
import java.util.Date;
/**
 * @description:
 * @author: shu
 * @createDate: 2023/5/7 10:33
 * @version: 1.0
 */
public class MyServerHandler extends ChannelInboundHandlerAdapter {
    private Logger logger = LoggerFactory.getLogger(MyServerHandler.class);
    /**
     * 当客户端主动链接服务端的链接后，这个通道就是活跃的了。也就是客户端与服务端建立了通信通道并且可以传输数据
     */
    @Override
    public void channelActive(ChannelHandlerContext ctx) throws Exception {
        SocketChannel channel = (SocketChannel) ctx.channel();
        //通知客户端链接建立成功
        String str = "通知客户端链接建立成功" + " " + new Date() + " " + channel.localAddress().getHostString() + "\r\n";
        ctx.writeAndFlush(str);
    }
    /**
     * 当客户端主动断开服务端的链接后，这个通道就是不活跃的。也就是说客户端与服务端的关闭了通信通道并且不可以传输数据
     */
    @Override
    public void channelInactive(ChannelHandlerContext ctx) throws Exception {
        logger.info("客户端断开链接{}", ctx.channel().localAddress().toString());
    }
    @Override
    public void channelRead(ChannelHandlerContext ctx, Object msg) throws Exception {
        //接收msg消息{与上一章节相比，此处已经不需要自己进行解码}
        logger.info(new SimpleDateFormat("yyyy-MM-dd HH:mm:ss").format(new Date()) + " 服务端接收到消息：" + msg);
        //通知客户端链消息发送成功
        String str = "服务端收到：" + new Date() + " " + msg + "\r\n";
        ctx.writeAndFlush(str);
    }
    /**
     * 抓住异常，当发生异常的时候，可以做一些相应的处理，比如打印日志、关闭链接
     */
    @Override
    public void exceptionCaught(ChannelHandlerContext ctx, Throwable cause) throws Exception {
        ctx.close();
        logger.info("异常信息：\r\n" + cause.getMessage());
    }
}

package com.shu;
import io.netty.channel.ChannelFuture;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.boot.CommandLineRunner;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.context.annotation.ComponentScan;
import java.net.InetSocketAddress;
/**
 * @description:
 * @author: shu
 * @createDate: 2023/5/7 10:36
 * @version: 1.0
 */
@SpringBootApplication
@ComponentScan("com.shu")
public class NettyApplication implements CommandLineRunner {
    @Value("${netty.host}")
    private String host;
    @Value("${netty.port}")
    private int port;
    @Autowired
    private NettyServer nettyServer;
    public static void main(String[] args) {
        SpringApplication.run(NettyApplication.class, args);
    }
    @Override
    public void run(String... args) throws Exception {
        InetSocketAddress address = new InetSocketAddress(host, port);
        ChannelFuture channelFuture = nettyServer.bind(address);
        Runtime.getRuntime().addShutdownHook(new Thread(() -> nettyServer.destroy()));
        channelFuture.channel().closeFuture().syncUninterruptibly();
    }
}

1.2 客户端

import io.netty.bootstrap.Bootstrap;
import io.netty.channel.*;
import io.netty.channel.nio.NioEventLoopGroup;
import io.netty.channel.socket.SocketChannel;
import io.netty.channel.socket.nio.NioSocketChannel;
import io.netty.handler.codec.LineBasedFrameDecoder;
import io.netty.handler.codec.string.StringDecoder;
import io.netty.handler.codec.string.StringEncoder;
import io.netty.handler.logging.LogLevel;
import io.netty.handler.logging.LoggingHandler;
import java.nio.charset.Charset;
import java.text.SimpleDateFormat;
import java.util.Date;
/**
 * @description:
 * @author: shu
 * @createDate: 2023/5/7 10:41
 * @version: 1.0
 */
public class ApiTest {
    public static void main(String[] args) {
        EventLoopGroup workerGroup = new NioEventLoopGroup();
        try {
            Bootstrap b = new Bootstrap();
            b.group(workerGroup);
            b.channel(NioSocketChannel.class);
            b.option(ChannelOption.AUTO_READ, true);
            b.handler(new ChannelInitializer() {
                @Override
                protected void initChannel(SocketChannel channel) throws Exception {
                    // 日志打印
                    channel.pipeline().addLast(new LoggingHandler(LogLevel.INFO));
                    // 基于换行符号
                    channel.pipeline().addLast(new LineBasedFrameDecoder(1024));
                    // 解码转String，注意调整自己的编码格式GBK、UTF-8
                    channel.pipeline().addLast(new StringDecoder(Charset.forName("GBK")));
                    // 解码转String，注意调整自己的编码格式GBK、UTF-8
                    channel.pipeline().addLast(new StringEncoder(Charset.forName("GBK")));
                    // 在管道中添加我们自己的接收数据实现方法
                    channel.pipeline().addLast(new ChannelInboundHandlerAdapter() {
                        @Override
                        public void channelRead(ChannelHandlerContext ctx, Object msg) throws Exception {
                            //接收msg消息{与上一章节相比，此处已经不需要自己进行解码}
                            System.out.println(new SimpleDateFormat("yyyy-MM-dd HH:mm:ss").format(new Date()) + " 客户端接收到消息：" + msg);
                        }
                    });
                }
            });
            ChannelFuture f = b.connect("127.0.0.1", 7397).sync();
            System.out.println(" client start done");
            //向服务端发送信息
            f.channel().writeAndFlush("你好，SpringBoot启动的netty服务端，“我的结尾是一个换行符，用于传输半包粘包处理”\r\n");
            f.channel().writeAndFlush("你好，SpringBoot启动的netty服务端，“我的结尾是一个换行符，用于传输半包粘包处理”\r\n");
            f.channel().writeAndFlush("你好，SpringBoot启动的netty服务端，“我的结尾是一个换行符，用于传输半包粘包处理”\r\n");
            f.channel().writeAndFlush("你好，SpringBoot启动的netty服务端，“我的结尾是一个换行符，用于传输半包粘包处理”\r\n");
            f.channel().writeAndFlush("你好，SpringBoot启动的netty服务端，“我的结尾是一个换行符，用于传输半包粘包处理”\r\n");
            f.channel().closeFuture().syncUninterruptibly();
        } catch (InterruptedException e) {
            e.printStackTrace();
        } finally {
            workerGroup.shutdownGracefully();
        }
    }
}

1.3 测试

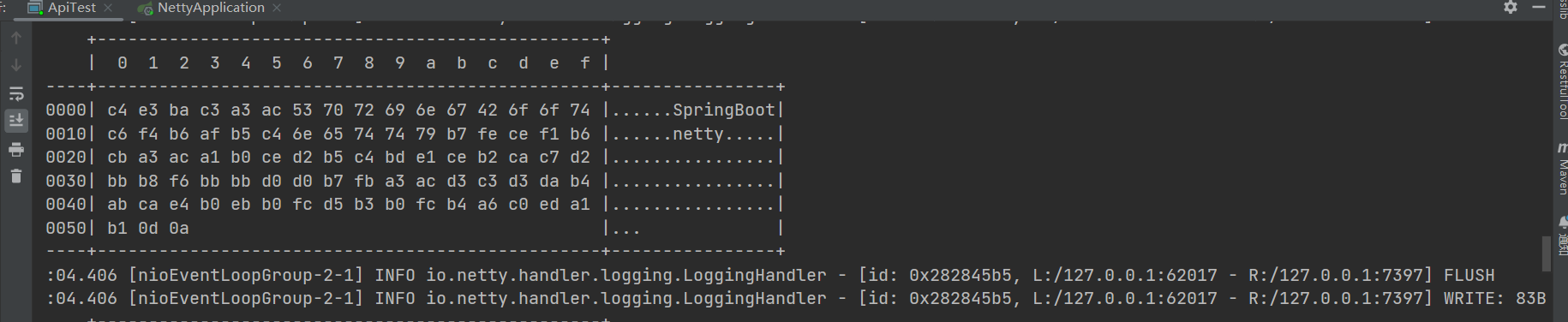

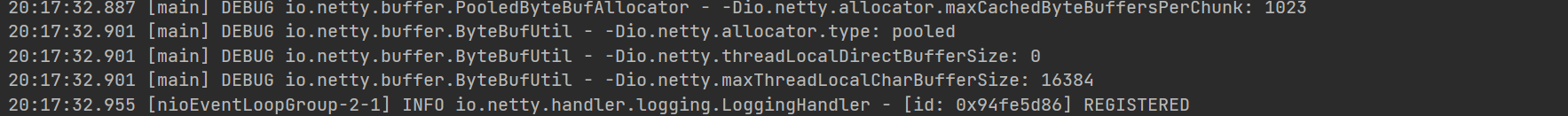

Netty+SpringBoot整合（一）,image.png,第1张

我们仔细来观察一下这个日志打印，并注意一下这些字节的意思

客户端

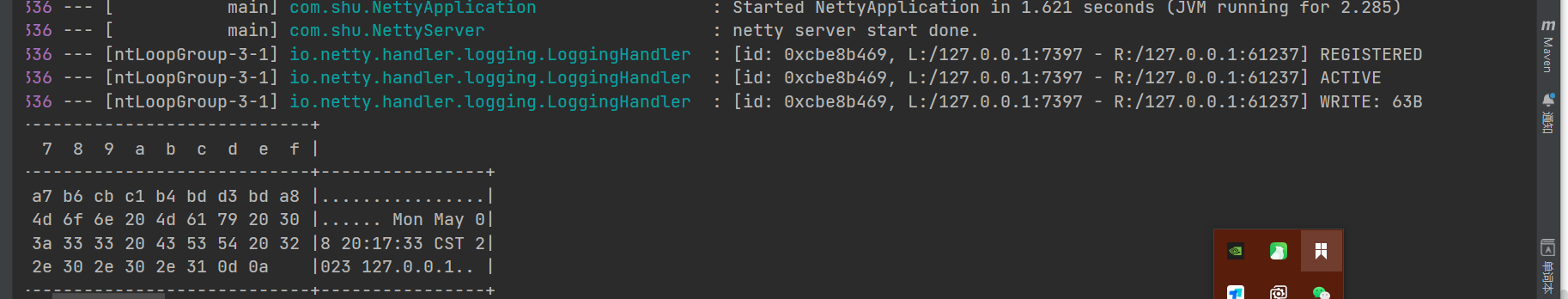

Netty+SpringBoot整合（一）,image.png,第2张

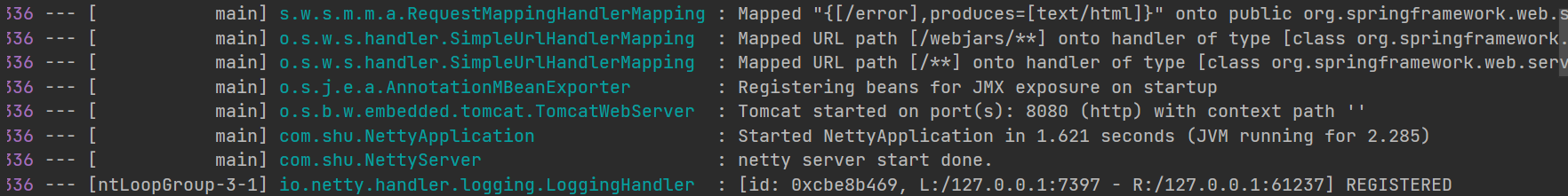

服务端

Netty+SpringBoot整合（一）,image.png,第3张

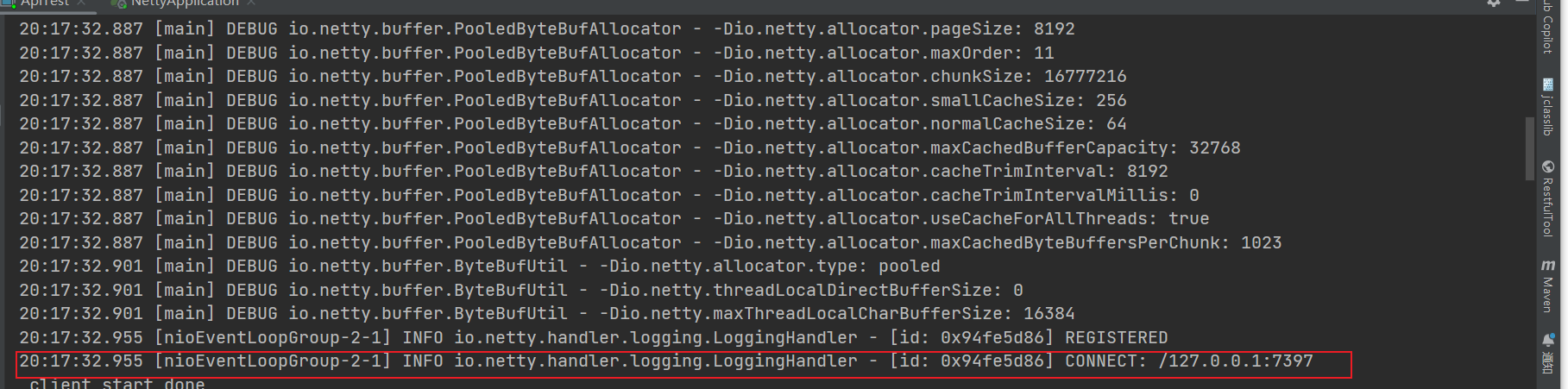

客户端建立连接

Netty+SpringBoot整合（一）,image.png,第4张

服务端连接建立，通知客户端连接建立

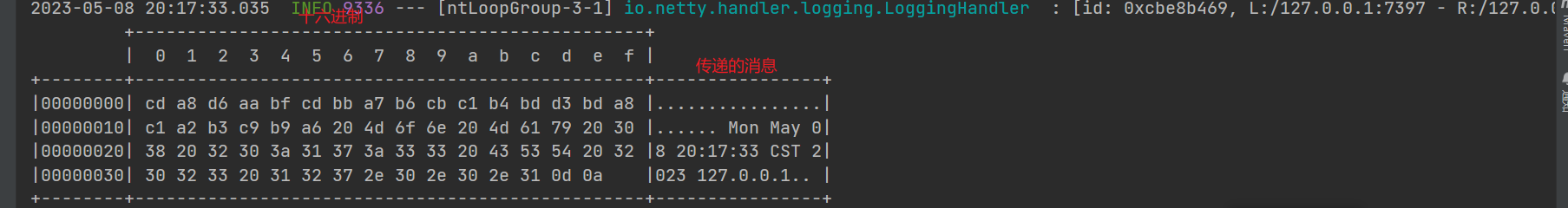

Netty+SpringBoot整合（一）,image.png,第5张

Netty+SpringBoot整合（一）,image.png,第6张

看到这里我就很疑惑他到底是如何把我们的文件转换成16进制的？

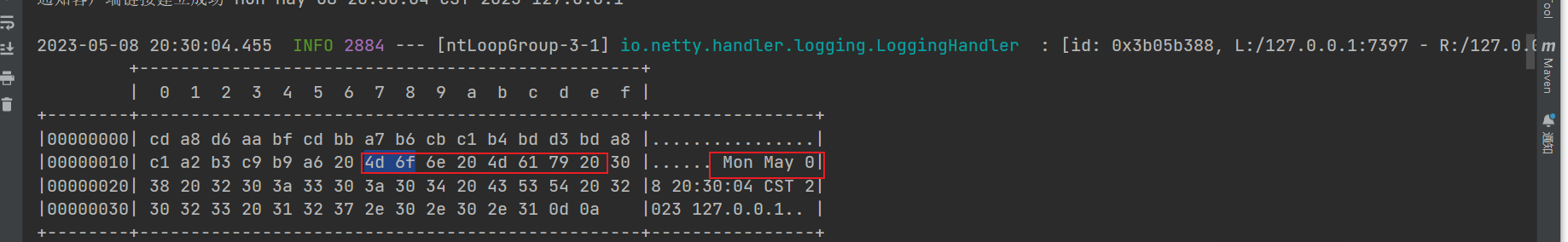

通过代码我们知道我们传递的文字：通知客户端链接建立成功 Mon May 08 20:30:04 CST 2023 127.0.0.1 但是他是如何转换成16进制的，下面我们来具体分析一下？

前提知识?

GBK的中文编码是双字节来表示的，英文编码是用ASC||码表示的，既用单字节表示。但GBK编码表中也有英文字符的双字节表示形式，所以英文字母可以有2中GBK表示方式。为区分中文，将其最高位都定成1。英文单字节最高位都为0。当用GBK解码时，若高字节最高位为0，则用ASC||码表解码；若高字节最高位为1，则用GBK编码表解码

至于UTF－8编码则是用以解决国际上字符的一种多字节编。码，它对英文使用8位（即一个字节），中文使用24位（三个字节）来编码。

分析

这里我们采用的是GBK编码，那我们咋看懂这些字节表示的啥，这里可能还需要一些基本知识进制的转成，1字节8bit ，有了基础知识我们再来分析，如上面说中文GBK两个字节表示一个中文，那么通这个中文对应的两个字节就是cd a8，那咋验证？

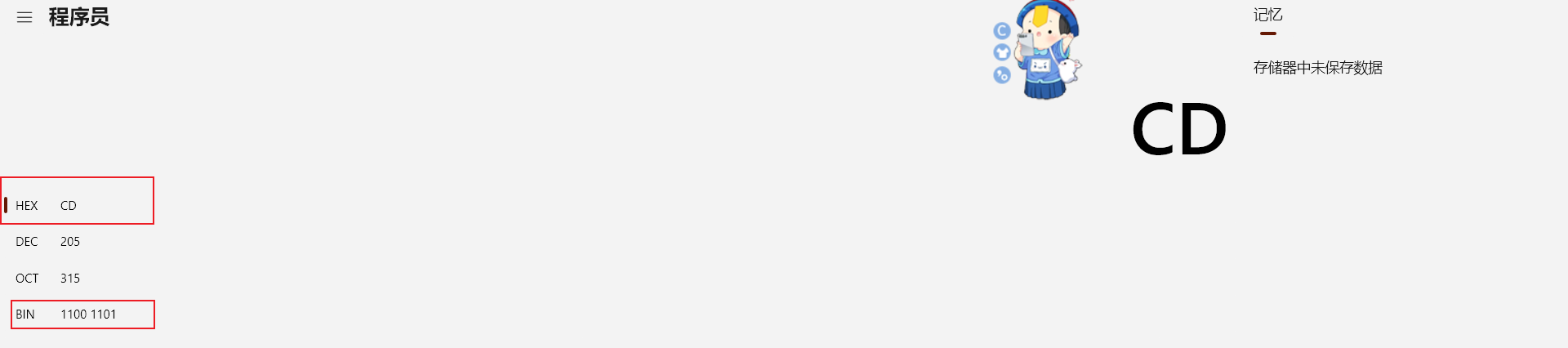

Netty+SpringBoot整合（一）,image.png,第7张

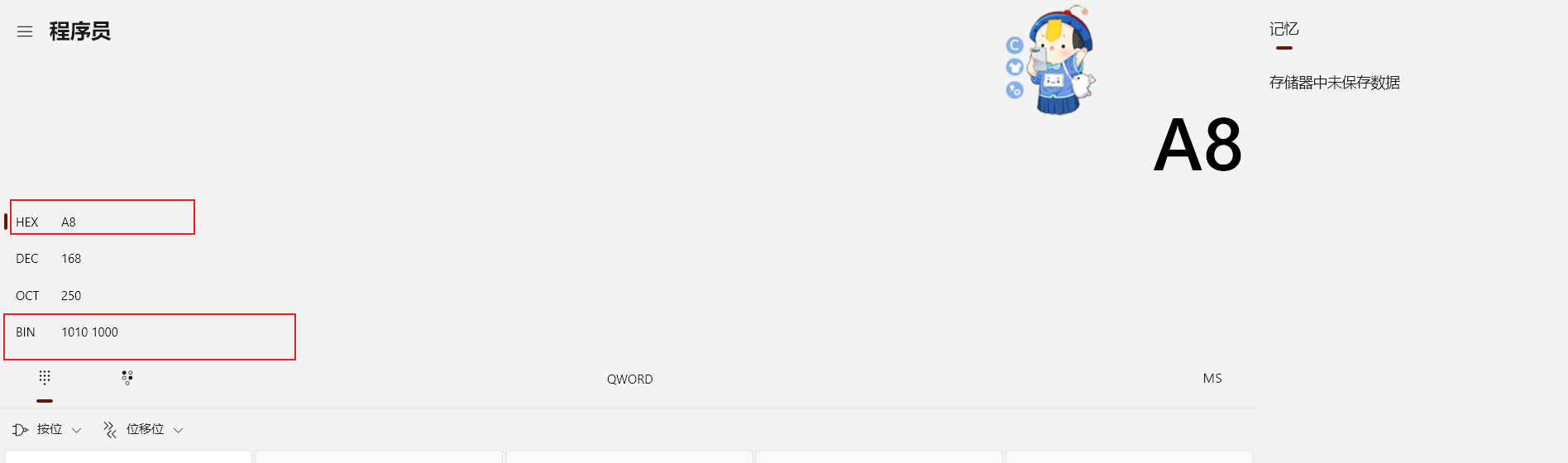

Netty+SpringBoot整合（一）,image.png,第8张

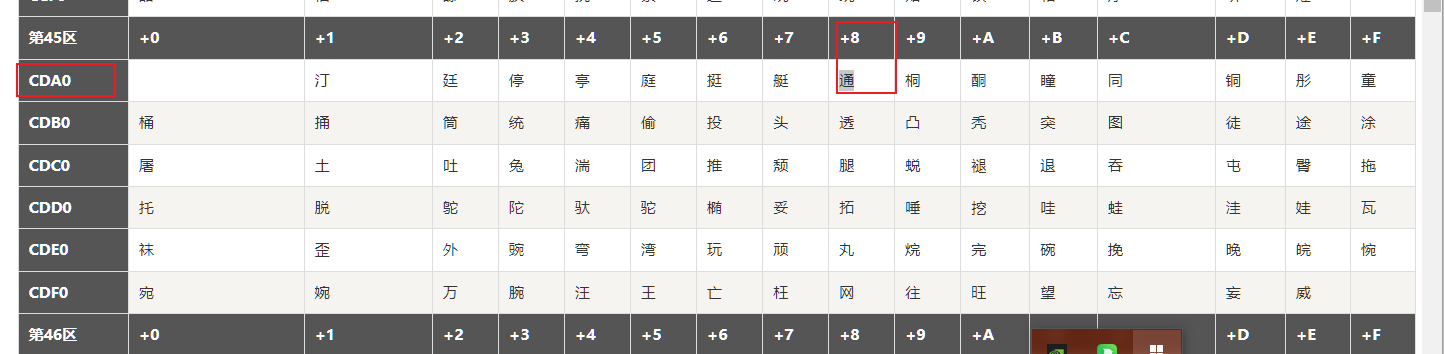

参考网站：GB2312简体中文编码表 - 常用参考表对照表 - 脚本之家在线工具

Netty+SpringBoot整合（一）,image.png,第9张

我们可以发现真是CDA8代表汉字通，这也解释我心中的疑惑，这里这是汉字，下面我们看一下字母

字母分析？

当用GBK解码时，若高字节最高位为0，则用ASC||码表解码；若高字节最高位为1，则用GBK编码表解码？

那啥是高字节与低字节?

存放最低的8位有效位的字节被称为最低有效位字节或低位字节，而存放最高的8位有效位的字节被称为最高有效位字节或高位字节。

高位字节低位字节

↓------------------------------↓ ↓-----------------------------↓

15  14  13  12  11  10  9.  8.  7.  6.  5.  4.  3.  2.  1.  0.

参考链接：ASCII码一览表，ASCII码对照表

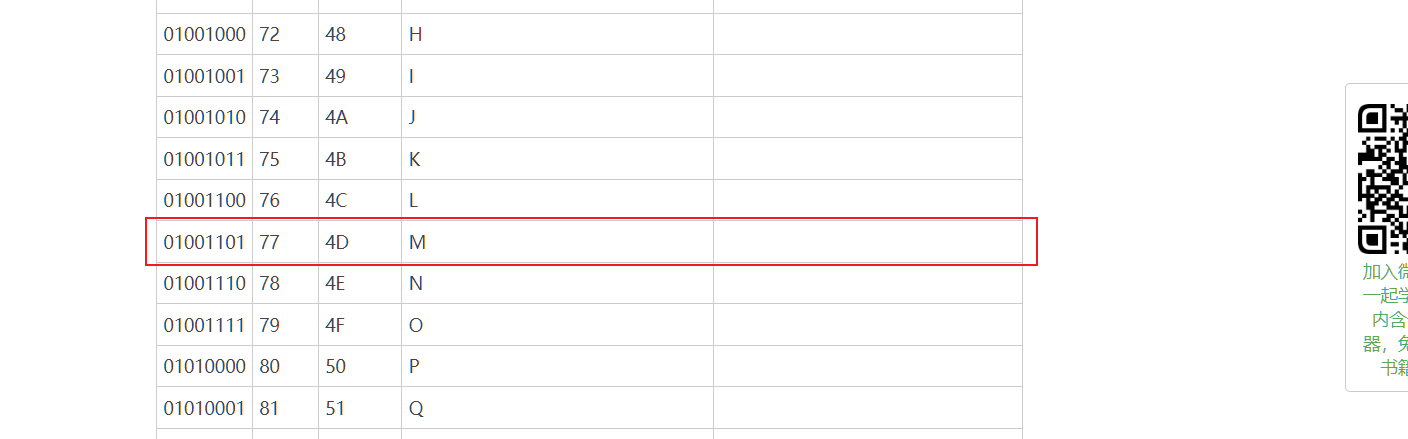

我们可以通过Ascll码表可以发现空格对应16进制的20

而M的十六进制：4D

Netty+SpringBoot整合（一）,image.png,第10张

Netty+SpringBoot整合（一）,image.png,第11张

相信进过上面的理解，应该这一看懂这段报文的理解，这也为了自己看懂协议有了会很好的铺垫，下面我们继续看服务端与客户端的连接过程

客户端收到消息，建立链接，可以进行消息的传递了

Netty+SpringBoot整合（一）,image.png,第12张

客户端写消息

Netty+SpringBoot整合（一）,image.png,第13张

服务端收消息

Netty+SpringBoot整合（一）,image.png,第14张

二 Netty实现简单的文件传输

文件传输在我们的实际开发中中非常常见，下面我们来个简单的案例

2.1 实体类

主要必须实现序列化

package com.shu.file01;
import lombok.Data;
import java.io.File;
import java.io.Serializable;
/**
 * @description:
 * @author: shu
 * @createDate: 2023/5/7 20:28
 * @version: 1.0
 */
@Data
public class FileResponse implements Serializable {
    private long length;
    private File file;
    public FileResponse() {
    }
    public FileResponse(long length, File file) {
        this.length = length;
        this.file = file;
    }
    public long getLength() {
        return length;
    }
    public File getFile() {
        return file;
    }
}

package com.shu.file01;
import lombok.Data;
import java.io.Serializable;
/**
 * @description:
 * @author: shu
 * @createDate: 2023/5/7 20:27
 * @version: 1.0
 */
@Data
public class FileRequest implements Serializable {
    private String fileName;
    public FileRequest() {
    }
    public FileRequest(String fileName) {
        this.fileName = fileName;
    }
    public String getFileName() {
        return fileName;
    }
}

2.2 服务端

package com.shu.file01;
import io.netty.bootstrap.ServerBootstrap;
import io.netty.channel.*;
import io.netty.channel.nio.NioEventLoopGroup;
import io.netty.channel.socket.SocketChannel;
import io.netty.channel.socket.nio.NioServerSocketChannel;
import io.netty.handler.codec.serialization.ClassResolvers;
import io.netty.handler.codec.serialization.ObjectDecoder;
import io.netty.handler.codec.serialization.ObjectEncoder;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.stereotype.Component;
/**
 * @description:
 * @author: shu
 * @createDate: 2023/5/7 19:57
 * @version: 1.0
 */
@Component("fileServer")
public class FileServer {
    private Logger logger = LoggerFactory.getLogger(FileServer.class);
    /**
     * 绑定端口
     *
     * @param port
     * @return
     */
    public void bind(int port) {
        EventLoopGroup bossGroup = new NioEventLoopGroup();
        EventLoopGroup workerGroup = new NioEventLoopGroup();
        try {
            ServerBootstrap bootstrap = new ServerBootstrap()
                    .group(bossGroup, workerGroup)
                    .channel(NioServerSocketChannel.class)
                    .childHandler(new ChannelInitializer() {
                        @Override
                        protected void initChannel(SocketChannel ch) throws Exception {
                            ch.pipeline()
                                    .addLast(new ObjectEncoder())
                                    .addLast(new ObjectDecoder(Integer.MAX_VALUE, ClassResolvers.weakCachingConcurrentResolver(null)))
                                    .addLast(new FileServerHandler());
                        }
                    });
            ChannelFuture future = bootstrap.bind(port).sync();
            future.channel().closeFuture().sync();
            System.out.println("服务端启动成功，端口：" + port);
        } catch (InterruptedException e) {
            throw new RuntimeException(e);
        } finally {
            bossGroup.shutdownGracefully();
            workerGroup.shutdownGracefully();
        }
    }
}

package com.shu.file01;
import io.netty.channel.*;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import java.io.File;
import java.io.RandomAccessFile;
/**
 * @description:
 * @author: shu
 * @createDate: 2023/5/7 20:19
 * @version: 1.0
 */
public class FileServerHandler extends ChannelInboundHandlerAdapter  {
    private static final String FILE_PATH = "D:\\coreconfig.txt";
    private Logger logger = LoggerFactory.getLogger(FileServerHandler.class);
    @Override
    public void channelActive(ChannelHandlerContext ctx) throws Exception {
        super.channelActive(ctx);
        logger.info("channelActive");
    }
    @Override
    public void channelRead(ChannelHandlerContext ctx, Object msg) throws Exception {
        logger.info("channelRead");
        if (msg instanceof FileRequest) {
            FileRequest request = (FileRequest) msg;
            if (request.getFileName().equals(FILE_PATH)) {
                File file = new File(FILE_PATH);
                if (file.exists()) {
                    RandomAccessFile raf = new RandomAccessFile(file, "r");
                    long length = raf.length();
                    FileResponse response = new FileResponse(length, file);
                    ctx.writeAndFlush(response);
                    ChannelFuture sendFileFuture = ctx.writeAndFlush(new DefaultFileRegion(raf.getChannel(), 0, length), ctx.newProgressivePromise());
                    sendFileFuture.addListener(new ChannelProgressiveFutureListener() {
                        @Override
                        public void operationComplete(ChannelProgressiveFuture future) throws Exception {
                            System.out.println("File transfer completed.");
                            raf.close();
                        }
                        @Override
                        public void operationProgressed(ChannelProgressiveFuture future, long progress, long total) throws Exception {
                            if (total < 0) {
                                System.err.println("File transfer progress: " + progress);
                            } else {
                                System.err.println("File transfer progress: " + progress + " / " + total);
                            }
                        }
                    });
                } else {
                    System.err.println("File not found: " + FILE_PATH);
                }
            } else {
                System.err.println("Invalid file name: " + request.getFileName());
            }
        }
    }
}

2.3 客户端

package com.shu.file01;
import io.netty.bootstrap.Bootstrap;
import io.netty.channel.*;
import io.netty.channel.nio.NioEventLoopGroup;
import io.netty.channel.socket.SocketChannel;
import io.netty.channel.socket.nio.NioSocketChannel;
import io.netty.handler.codec.serialization.ClassResolvers;
import io.netty.handler.codec.serialization.ObjectDecoder;
import io.netty.handler.codec.serialization.ObjectEncoder;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
/**
 * @description:
 * @author: shu
 * @createDate: 2023/5/7 20:42
 * @version: 1.0
 */
public class FileClient {
    private static final int PORT = 8080;
    private static final String HOST = "localhost";
    private Logger logger = LoggerFactory.getLogger(FileClient.class);
    private final EventLoopGroup parentGroup = new NioEventLoopGroup();
    /**
     * 连接服务端
     */
    public void connect() {
        EventLoopGroup group = new NioEventLoopGroup();
        try {
            Bootstrap bootstrap = new Bootstrap()
                    .group(group)
                    .channel(NioSocketChannel.class)
                    .option(ChannelOption.TCP_NODELAY, true)
                    .handler(new ChannelInitializer() {
                        @Override
                        protected void initChannel(SocketChannel ch) throws Exception {
                            ch.pipeline()
                                    .addLast(new ObjectEncoder())
                                    .addLast(new ObjectDecoder(ClassResolvers.weakCachingConcurrentResolver(null)))
                                    .addLast(new FileClientHandler());
                        }
                    });
            ChannelFuture future = bootstrap.connect(HOST, PORT).sync();
            future.channel().closeFuture().sync();
        } catch (Exception e) {
            throw new RuntimeException(e);
        } finally {
            group.shutdownGracefully();
        }
    }
}

package com.shu.file01;
import io.netty.channel.ChannelHandlerContext;
import io.netty.channel.ChannelInboundHandlerAdapter;
import java.io.File;
import java.io.FileOutputStream;
import java.nio.channels.FileChannel;
/**
 * @description:
 * @author: shu
 * @createDate: 2023/5/7 20:47
 * @version: 1.0
 */
public class FileClientHandler extends ChannelInboundHandlerAdapter {
    @Override
    public void channelActive(ChannelHandlerContext ctx) throws Exception {
        FileRequest request = new FileRequest("D:\\coreconfig.txt");
        ctx.writeAndFlush(request);
    }
    @Override
    public void channelRead(ChannelHandlerContext ctx, Object msg) throws Exception {
        if (msg instanceof FileResponse) {
            FileResponse response = (FileResponse) msg;
            File file = response.getFile();
            long fileLength = response.getLength();
            FileOutputStream fos = new FileOutputStream(file);
            FileChannel channel = fos.getChannel();
//            channel.transferFrom(channel, 0, fileLength);
            System.out.println("File " + file.getName() + " received.");
        } else {
            System.err.println("Invalid response type: " + msg.getClass());
        }
    }
}

2.4 测试

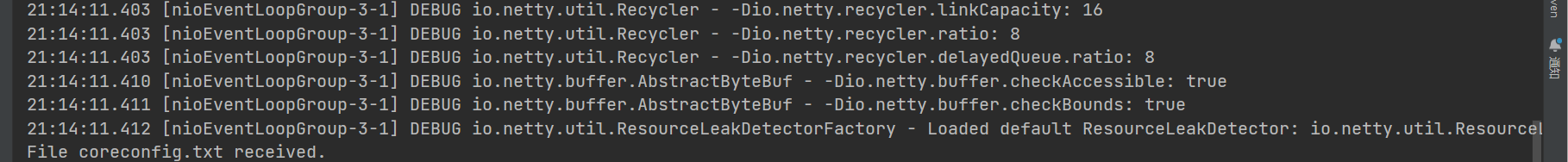

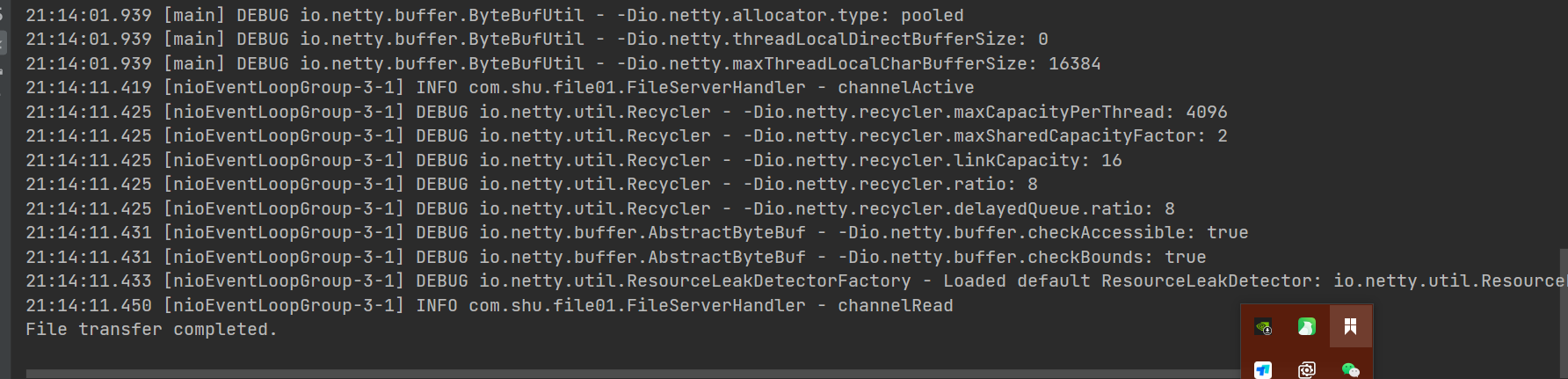

Netty+SpringBoot整合（一）,image.png,第15张

Netty+SpringBoot整合（一）,image.png,第16张

这就是一个简单的测试吧，实际的开发中我们需要考虑很多，比如大文件的传输，断点续点，文件传输的加密等等系列问题，这个我正在研究中，以后再说

上一篇：Spring Boot 中的 @FeignClient 注解是什么，原理，如何使用

下一篇：springBoot-Mybatis-Plus 多数据源切换实现

目录
