前言

Spring Boot 3已经发布一段时间，网上关于Spring Boot 3的资料不是很多，本着对新技术的热情，学习和研究了大量Spring Boot 3新功能和新特性，感兴趣的同学可以参考Spring官方资料全面详细的新功能/新改进介绍

Spring版本升级到6.x
JDK版本至少17+

…

新特性有很多，本文主要针对OAuth 2.0的集成，如果快速开发自己的认证授权服务、OAuth客户端以及资源服务

本文开发环境介绍

开发依赖	版本
Spring Boot	3.0.2

开发环境端口说明

新建三个服务，分别对应认证授权服务、OAuth客户端以及资源服务

服务	端口
认证授权服务	8080
OAuth客户端服务	8081
资源服务	8082

认证授权服务

pom.xml依赖

Spring发布了spring-security-oauth2-authorization-server项目，目前最新版是1.0版，pom.xml依赖如下



        org.springframework.boot
        spring-boot-starter-web


        org.springframework.boot
        spring-boot-starter-security


        org.springframework.security
        spring-security-oauth2-authorization-server
        ${spring-security-oauth2-authorization-server.version}

新建Oauth2ServerAutoConfiguration类

package com.wen3.oauth.ss.authserver.authconfigure;
import com.nimbusds.jose.jwk.JWKSet;
import com.nimbusds.jose.jwk.RSAKey;
import com.nimbusds.jose.jwk.source.ImmutableJWKSet;
import com.nimbusds.jose.jwk.source.JWKSource;
import com.nimbusds.jose.proc.SecurityContext;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.core.annotation.Order;
import org.springframework.security.config.Customizer;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.config.annotation.web.configurers.oauth2.server.resource.OAuth2ResourceServerConfigurer;
import org.springframework.security.core.userdetails.User;
import org.springframework.security.core.userdetails.UserDetails;
import org.springframework.security.core.userdetails.UserDetailsService;
import org.springframework.security.oauth2.core.AuthorizationGrantType;
import org.springframework.security.oauth2.core.ClientAuthenticationMethod;
import org.springframework.security.oauth2.core.oidc.OidcScopes;
import org.springframework.security.oauth2.jwt.JwtDecoder;
import org.springframework.security.oauth2.server.authorization.client.InMemoryRegisteredClientRepository;
import org.springframework.security.oauth2.server.authorization.client.RegisteredClient;
import org.springframework.security.oauth2.server.authorization.client.RegisteredClientRepository;
import org.springframework.security.oauth2.server.authorization.config.annotation.web.configuration.OAuth2AuthorizationServerConfiguration;
import org.springframework.security.oauth2.server.authorization.config.annotation.web.configurers.OAuth2AuthorizationServerConfigurer;
import org.springframework.security.oauth2.server.authorization.settings.AuthorizationServerSettings;
import org.springframework.security.oauth2.server.authorization.settings.ClientSettings;
import org.springframework.security.provisioning.InMemoryUserDetailsManager;
import org.springframework.security.web.SecurityFilterChain;
import org.springframework.security.web.authentication.LoginUrlAuthenticationEntryPoint;
import org.springframework.security.web.util.matcher.AntPathRequestMatcher;
import java.security.KeyPair;
import java.security.KeyPairGenerator;
import java.security.interfaces.RSAPrivateKey;
import java.security.interfaces.RSAPublicKey;
import java.util.UUID;
@Configuration
public class Oauth2ServerAutoConfiguration {
    @Bean
    @Order(1)
    public SecurityFilterChain authorizationServerSecurityFilterChain(HttpSecurity http) throws Exception {
        OAuth2AuthorizationServerConfiguration.applyDefaultSecurity(http);
        http.getConfigurer(OAuth2AuthorizationServerConfigurer.class)
                .oidc(Customizer.withDefaults());	// Enable OpenID Connect 1.0
        http
                // Redirect to the login page when not authenticated from the
                // authorization endpoint
                .exceptionHandling((exceptions) -> exceptions
                        .authenticationEntryPoint(
                                new LoginUrlAuthenticationEntryPoint("/login"))
                )
                // Accept access tokens for User Info and/or Client Registration
                .oauth2ResourceServer(OAuth2ResourceServerConfigurer::jwt);
        return http.build();
    }
    @Bean
    @Order(2)
    public SecurityFilterChain defaultSecurityFilterChain(HttpSecurity http) throws Exception {
        http
                .authorizeHttpRequests((authorize) -> authorize
                        .requestMatchers(new AntPathRequestMatcher("/actuator/**"),
                                new AntPathRequestMatcher("/oauth2/**"),
                                new AntPathRequestMatcher("/**/*.json"),
                                new AntPathRequestMatcher("/**/*.html")).permitAll()
                        .anyRequest().authenticated()
                )
                // Form login handles the redirect to the login page from the
                // authorization server filter chain
                .formLogin(Customizer.withDefaults());
        return http.build();
    }
    @Bean

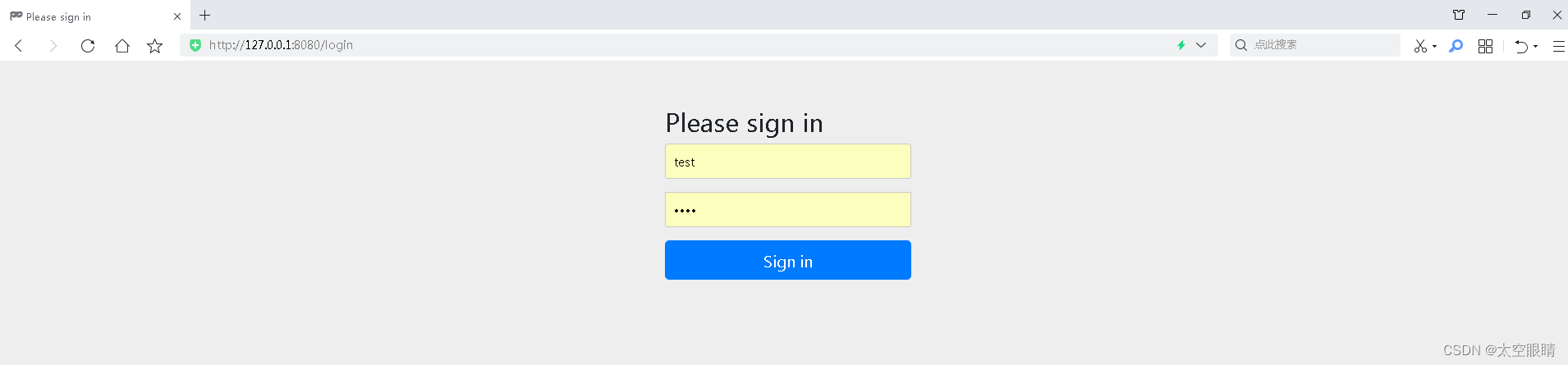

    public UserDetailsService userDetailsService() {
        UserDetails userDetails = User.withDefaultPasswordEncoder()
                .username("test")
                .password("test")
                .roles("USER")
                .build();
        return new InMemoryUserDetailsManager(userDetails);
    }
    @Bean
    public RegisteredClientRepository registeredClientRepository() {
        RegisteredClient registeredClient = RegisteredClient.withId(UUID.randomUUID().toString())
                .clientId("demo-client-id")
                .clientSecret("{noop}demo-client-secret")
                .clientAuthenticationMethod(ClientAuthenticationMethod.CLIENT_SECRET_BASIC)
                .authorizationGrantType(AuthorizationGrantType.AUTHORIZATION_CODE)
                .authorizationGrantType(AuthorizationGrantType.REFRESH_TOKEN)
                .authorizationGrantType(AuthorizationGrantType.CLIENT_CREDENTIALS)
//                .tokenSettings(TokenSettings.builder().accessTokenFormat(OAuth2TokenFormat.REFERENCE).build())
                .redirectUri("http://127.0.0.1:8081/login/oauth2/code/client-id-1")
                .redirectUri("http://127.0.0.1:8081/login/oauth2/code/client-id-2")
                .scope(OidcScopes.OPENID)
                .scope(OidcScopes.PROFILE)
                .scope("message.read")
                .scope("message.write")
                .scope("user_info")
                .scope("pull_requests")

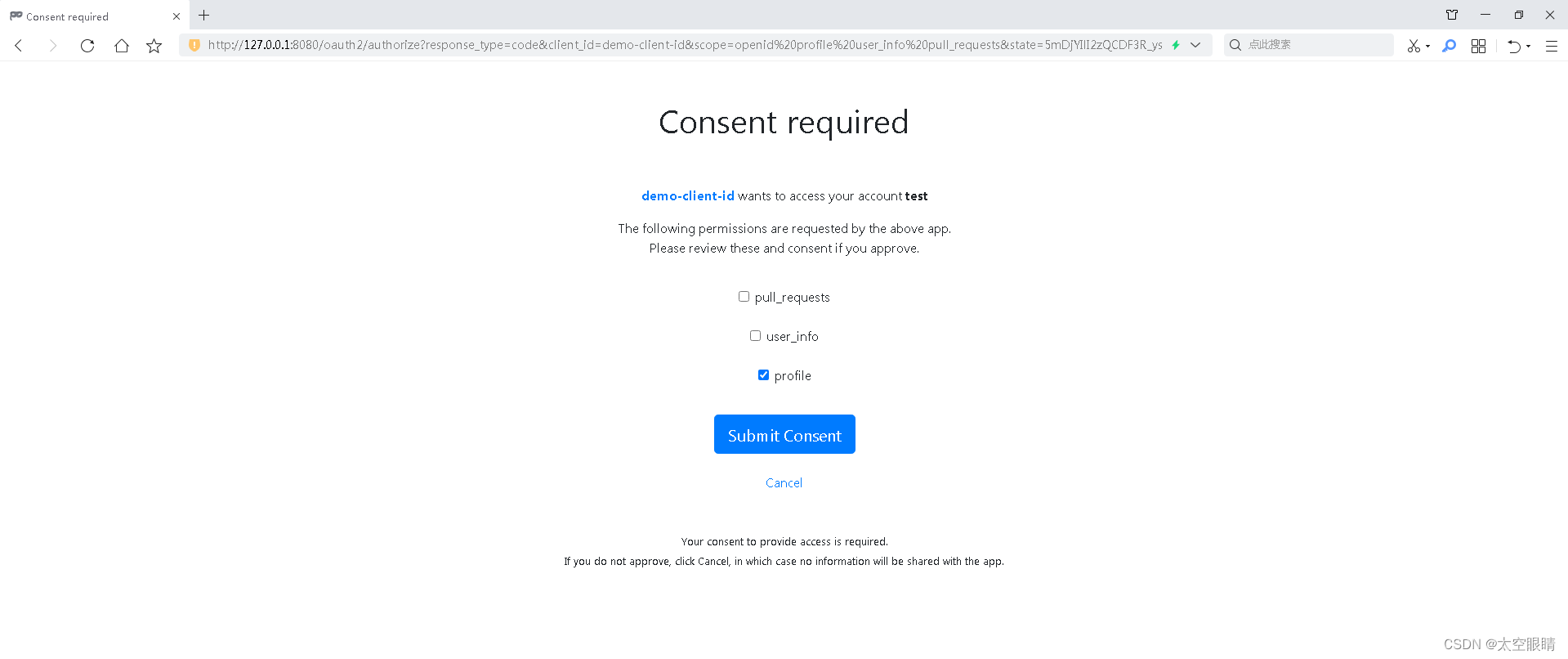

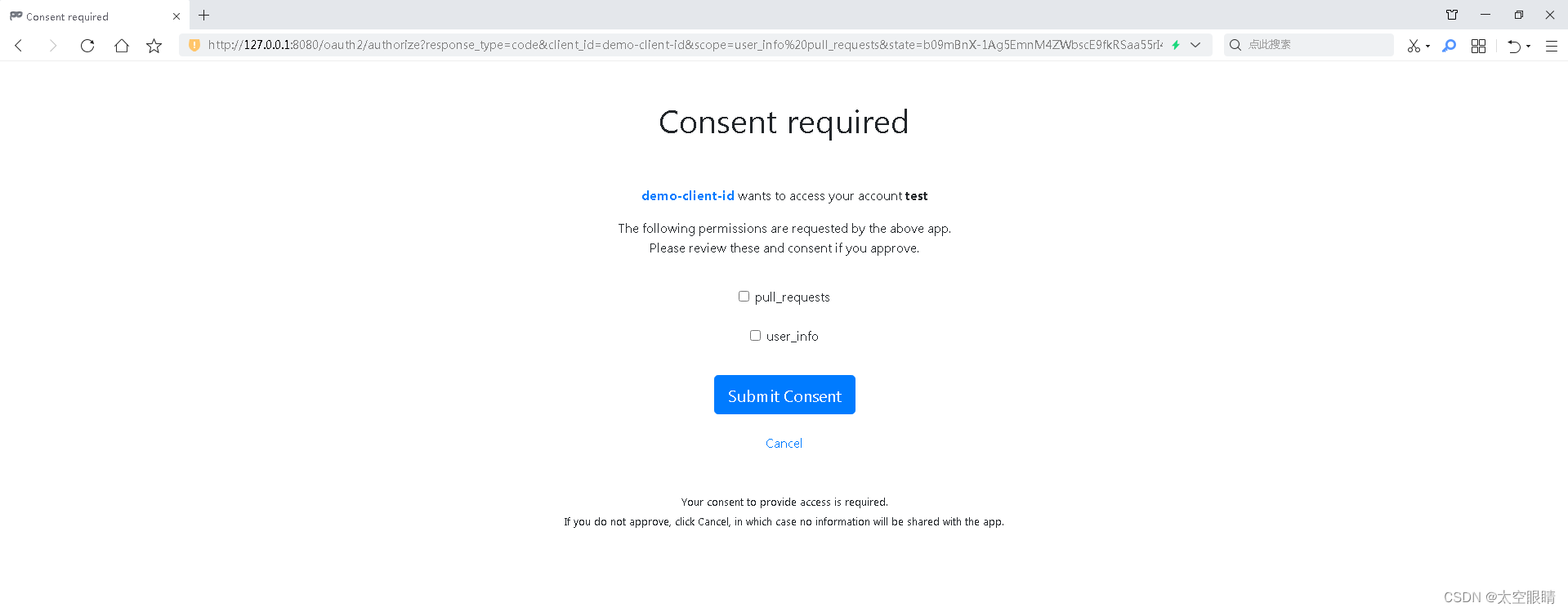

                // 登录成功后对scope进行确认授权
                .clientSettings(ClientSettings.builder().requireAuthorizationConsent(true).build())
                .build();
        return new InMemoryRegisteredClientRepository(registeredClient);
    }
    @Bean
    public JWKSource jwkSource() {
        KeyPair keyPair = generateRsaKey();
        RSAPublicKey publicKey = (RSAPublicKey) keyPair.getPublic();
        RSAPrivateKey privateKey = (RSAPrivateKey) keyPair.getPrivate();
        RSAKey rsaKey = new RSAKey.Builder(publicKey)
                .privateKey(privateKey)
                .keyID(UUID.randomUUID().toString())
                .build();
        JWKSet jwkSet = new JWKSet(rsaKey);
        return new ImmutableJWKSet<>(jwkSet);
    }
    private static KeyPair generateRsaKey() {
        KeyPair keyPair;
        try {
            KeyPairGenerator keyPairGenerator = KeyPairGenerator.getInstance("RSA");
            keyPairGenerator.initialize(2048);
            keyPair = keyPairGenerator.generateKeyPair();
        }
        catch (Exception ex) {
            throw new IllegalStateException(ex);
        }
        return keyPair;
    }
    @Bean
    public JwtDecoder jwtDecoder(JWKSource jwkSource) {
        return OAuth2AuthorizationServerConfiguration.jwtDecoder(jwkSource);
    }
    @Bean
    public AuthorizationServerSettings authorizationServerSettings() {
        return AuthorizationServerSettings.builder().build();
    }
}

main函数

@SpringBootApplication
public class OauthServerApplication {
    public static void main(String[] args) {
        SpringApplication.run(OauthServerApplication.class, args);
    }
}

yml配置

server:
  port: 8080

第三方应用OAuth客户端

pom.xml依赖



        org.springframework.boot
        spring-boot-starter-web


        org.springframework.boot
        spring-boot-starter-security


        org.springframework.boot
        spring-boot-starter-oauth2-client

新建Oauth2ClientAutoConfiguration类

package com.wen3.oauth.ss.authclient.autoconfigure;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.config.http.SessionCreationPolicy;
import org.springframework.security.web.SecurityFilterChain;
@Configuration
public class Oauth2ClientAutoConfiguration {
    @Bean
    public SecurityFilterChain authorizationClientSecurityFilterChain(HttpSecurity http) throws Exception {
        http
                .authorizeHttpRequests()
                .anyRequest().authenticated()
                .and().logout()
                .and().sessionManagement().sessionCreationPolicy(SessionCreationPolicy.ALWAYS)
                .and().oauth2Client()
                .and().oauth2Login();
        return http.build();
    }
}

新建OauthClientDemoController类

package com.wen3.oauth.ss.authclient.controller;
import lombok.extern.slf4j.Slf4j;
import org.springframework.security.core.Authentication;
import org.springframework.security.core.context.SecurityContextHolder;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;
@Slf4j
@RestController
public class OauthClientDemoController {

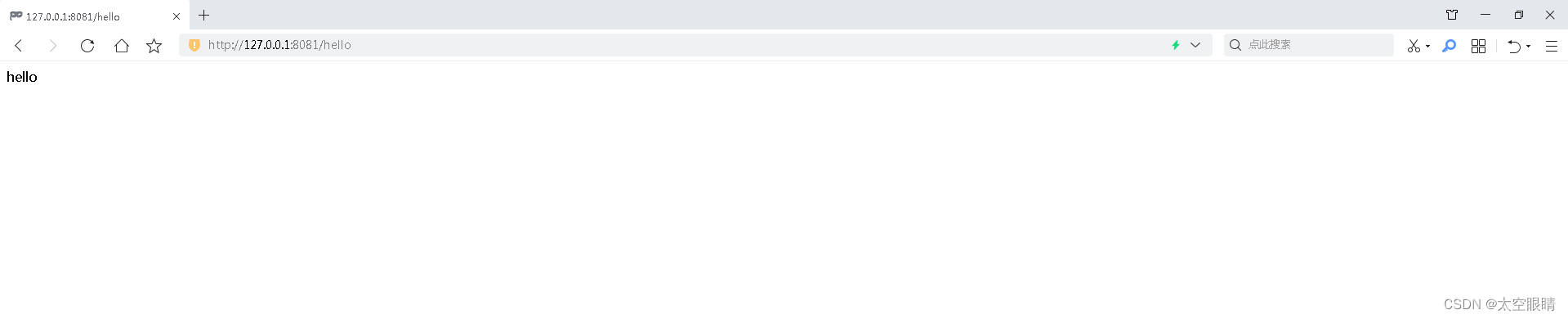

    @RequestMapping(path = "/hello")
    public String demo() {
        Authentication authentication = SecurityContextHolder.getContext().getAuthentication();
        log.info("authentication: {}", authentication);
        return "hello";
    }
}

main函数

@SpringBootApplication
public class OauthServerApplication {
    public static void main(String[] args) {
        SpringApplication.run(OauthServerApplication.class, args);
    }
}

yml配置

server:
  port: 8081
  servlet:
    session:
      cookie:
        # 需要更换存放sessionId的cookie名字，否则认证服务和客户端的sessionId会相互覆盖
        name: JSESSIONID-2
spring:
  security:
    oauth2:
      client:

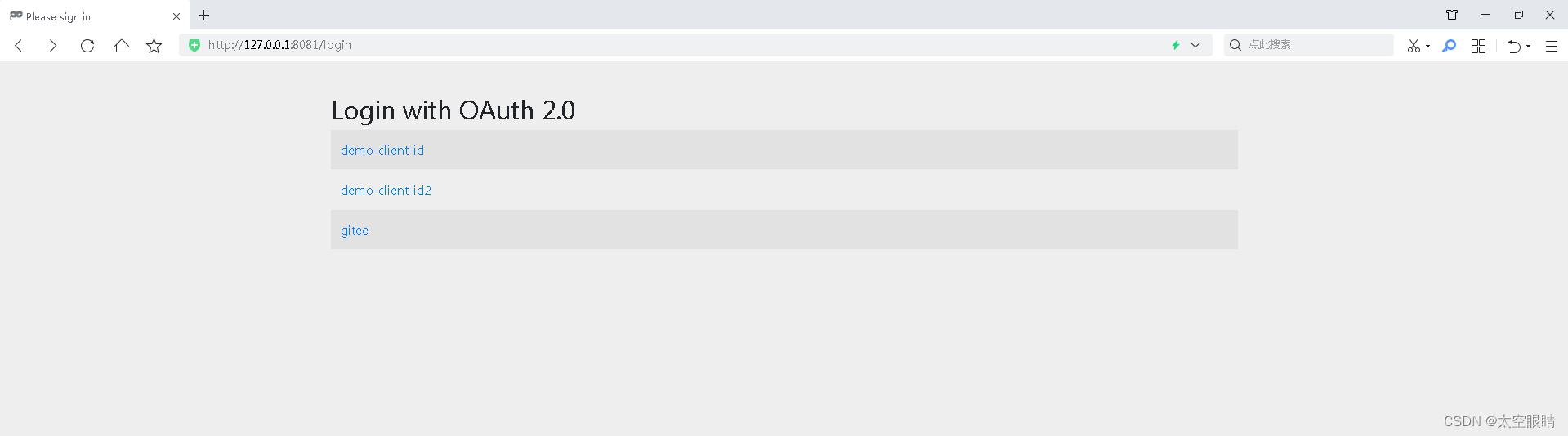

        registration:
          client-id-1:
            provider: demo-client-id
            client-id: demo-client-id
            client-secret: demo-client-secret
            authorization-grant-type: authorization_code
            redirect-uri: '{baseUrl}/{action}/oauth2/code/{registrationId}'
            #            client-authentication-method: POST
            scope: user_info, pull_requests
            client-name: demo-client-id
          client-id-2:
            provider: demo-client-id2
            client-id: demo-client-id
            client-secret: demo-client-secret
            authorization-grant-type: authorization_code
            redirect-uri: '{baseUrl}/{action}/oauth2/code/{registrationId}'
            #            client-authentication-method: POST
            scope: user_info, pull_requests
            client-name: demo-client-id2
        provider:
          demo-client-id:
            authorization-uri: http://127.0.0.1:8080/oauth2/authorize
            token-uri: http://127.0.0.1:8080/oauth2/token
            user-info-uri: http://127.0.0.1:8082/user/info
            user-name-attribute: name
            jwk-set-uri: http://127.0.0.1:8080/oauth2/jwks
          demo-client-id2:
            authorization-uri: http://127.0.0.1:8080/oauth2/authorize
            token-uri: http://127.0.0.1:8080/oauth2/token
            user-info-uri: http://127.0.0.1:8082/user/info
            user-name-attribute: name
            jwk-set-uri: http://127.0.0.1:8080/oauth2/jwks

资源服务

pom.xml依赖



        org.springframework.boot
        spring-boot-starter-web


        org.springframework.boot
        spring-boot-starter-security


        org.springframework.boot
        spring-boot-starter-oauth2-resource-server

新建ResourceServerAutoConfiguration类

package com.wen3.oauth.ss.resourceserver.autoconfigure;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.web.SecurityFilterChain;
@Configuration
public class ResourceServerAutoConfiguration {
    @Bean
    public SecurityFilterChain resourceServerSecurityFilterChain(HttpSecurity http) throws Exception {
        http.authorizeHttpRequests().anyRequest().authenticated().and()
                .oauth2ResourceServer().jwt();
        return http.build();
    }
}

新建UserController类

package com.wen3.oauth.ss.resourceserver.controller;
import jakarta.servlet.http.HttpServletRequest;
import jakarta.servlet.http.HttpServletResponse;
import org.springframework.http.MediaType;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.bind.annotation.ResponseBody;
import org.springframework.web.bind.annotation.RestController;
import java.util.HashMap;
import java.util.Map;
@RestController
public class UserController {
    @RequestMapping(path = "/user/info", method = {RequestMethod.GET,RequestMethod.POST}, produces = MediaType.APPLICATION_JSON_VALUE)
    @ResponseBody
    public Map getUser(HttpServletRequest request, HttpServletResponse response) {
        Map map = new HashMap<>();
        map.put("name", "xxx");
        return map;
    }
}

main函数

package com.wen3.oauth.ss.resourceserver;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
@SpringBootApplication
public class ResourceServerApplication {
    public static void main(String[] args) {
        SpringApplication.run(ResourceServerApplication.class, args);
    }
}

yml配置

server:
  port: 8082
spring:
  security:
    oauth2:
      resourceserver:
        jwt:
          jwk-set-uri: http://127.0.0.1:8080/oauth2/jwks

演示

在浏览器地址栏输入http://127.0.0.1:8081/hello

因为配置了多个client，会让用户选择用哪个client进行OAuth登录
选择第一个client-id-1
跳转到认证授权服务进行登录
输入用户名test，密码test
登录成功后跳转授权页面
勾选scope确认授权

重定向请求

Spring Boot 最新版3.x 集成 OAuth 2.0实现认证授权服务、第三方应用客户端以及资源服务,在这里插入图片描述,第4张

以上所有页面都是Spring默认的，真实业务开发会自定义这些页面

OAuth客户端openid演示

在浏览器输入http://127.0.0.1:8080/.well-known/openid-configuration

{"issuer":"http://127.0.0.1:8080","authorization_endpoint":"http://127.0.0.1:8080/oauth2/authorize","token_endpoint":"http://127.0.0.1:8080/oauth2/token","token_endpoint_auth_methods_supported":["client_secret_basic","client_secret_post","client_secret_jwt","private_key_jwt"],"jwks_uri":"http://127.0.0.1:8080/oauth2/jwks","userinfo_endpoint":"http://127.0.0.1:8080/userinfo","response_types_supported":["code"],"grant_types_supported":["authorization_code","client_credentials","refresh_token"],"revocation_endpoint":"http://127.0.0.1:8080/oauth2/revoke","revocation_endpoint_auth_methods_supported":["client_secret_basic","client_secret_post","client_secret_jwt","private_key_jwt"],"introspection_endpoint":"http://127.0.0.1:8080/oauth2/introspect","introspection_endpoint_auth_methods_supported":["client_secret_basic","client_secret_post","client_secret_jwt","private_key_jwt"],"subject_types_supported":["public"],"id_token_signing_alg_values_supported":["RS256"],"scopes_supported":["openid"]}

如果配置了issuer-uri，启动的时候会调用${issuer-uri}/.well-known/openid-configuration获取provider配置信息，如果issuer-uri配置了path也会替换成/.well-known/openid-configuration
从/.well-known/openid-configuration这个接口获取到的user-info-uri地址是http://127.0.0.1:8080/userinfo 所以会从授权服务获取用户信息

要想让授权服务的/userinfo接口正常返回，则需要在配置registration时，在scope增加openid，同时scope还需要在profile、email、address、phone中增加至少一个，修改后的yml配置如下

server:
  port: 8081
  servlet:
    session:
      cookie:
        # 需要更换存放sessionId的cookie名字，否则认证服务和客户端的sessionId会相互覆盖
        name: JSESSIONID-2
spring:
  security:
    oauth2:
      client:
        registration:
          client-id-1:
            provider: demo-client-id
            client-id: demo-client-id
            client-secret: demo-client-secret
            authorization-grant-type: authorization_code
            redirect-uri: '{baseUrl}/{action}/oauth2/code/{registrationId}'
#            client-authentication-method: POST
            scope: openid, profile, user_info, pull_requests
            client-name: demo-client-id
          client-id-2:
            provider: demo-client-id2
            client-id: demo-client-id
            client-secret: demo-client-secret
            authorization-grant-type: authorization_code
            redirect-uri: '{baseUrl}/{action}/oauth2/code/{registrationId}'
#            client-authentication-method: POST
            scope: openid, profile, user_info, pull_requests
            client-name: demo-client-id2
        provider:
          demo-client-id:
            issuer-uri: http://127.0.0.1:8080
          demo-client-id2:
            issuer-uri: http://127.0.0.1:8080

授权页面会有变化

结束

本人经过研读SpringBoot3相关源码，基本上把所有功能都体验了一遍，这篇文章主要是针对最新版的SpringBoot集成OAuth功能进行演示，背后的原理，大家有疑问的可以留言交流。

上一篇：Linux-安装MySQL（详细教程）

下一篇：怎么查询MySQL的安装路径？

目录

前言

本文开发环境介绍

开发环境端口说明

认证授权服务

pom.xml依赖

新建Oauth2ServerAutoConfiguration类

main函数

yml配置

第三方应用OAuth客户端

pom.xml依赖

新建Oauth2ClientAutoConfiguration类

新建OauthClientDemoController类

main函数

yml配置

资源服务

pom.xml依赖

新建ResourceServerAutoConfiguration类

新建UserController类

main函数

yml配置

演示

OAuth客户端openid演示

结束
