            一、系统需求分析

            需求分析首先要确定研究分析的对象，这里的需求分析对象有两方：买家和卖家。

            对于买家，需求是能够进行线上点餐，具体可以细化为：能够在线上获得餐品信息和进行点餐行为。买家作为消费者，都想得到更为优质的服务体验，希望能够通过较为简单顺利的操作就可以吃到满足自己口味的菜肴。这就要求系统界面能够生动形象地有效呈现出点餐的各项信息，菜品的价格，可以选择就坐的餐桌的数目等情况以及加餐时简洁的操作界面。

            对于卖家，需求是能够对菜品进行增查删改以及增加会员，具体可以细化为，能够线上获得全部的菜品信息，添加菜品，修改菜品价格，删除菜品，增加会员。卖家即为商家，商家要能够高效地获取这些的信息，当然是图形化界面和几何形式的信息呈现最为直接明了。

            二、系统设计

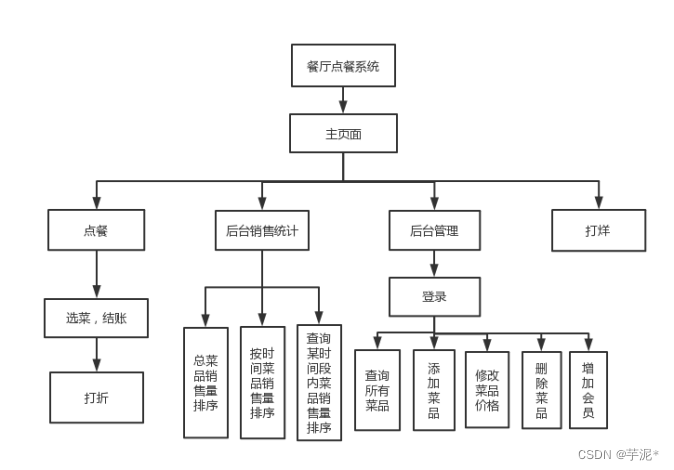

            1. 功能结构设计



            2、概念设计

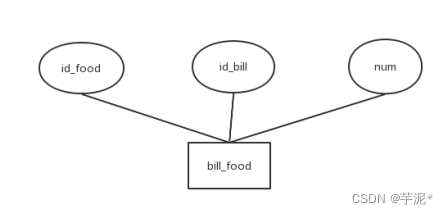

            2.2.1 bill_food表E-R图

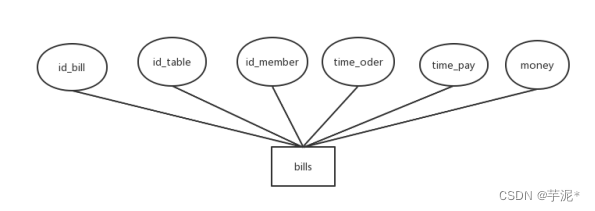

            2.2.2 bills表E-R图



            2.2.3 categories E-R图

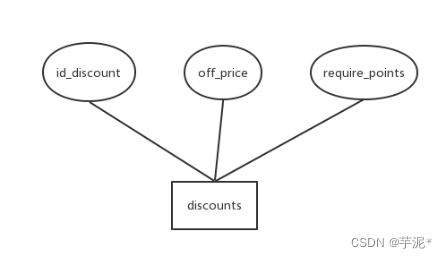

            2.2.4 discounts表 E-R图

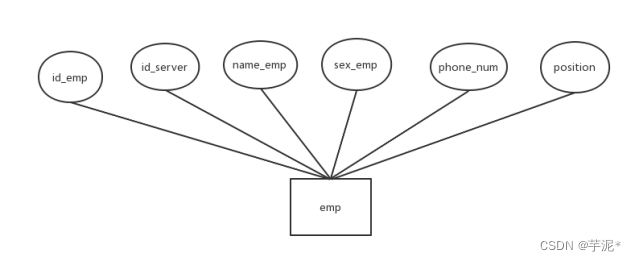

            2.2.5 emp表E-R图

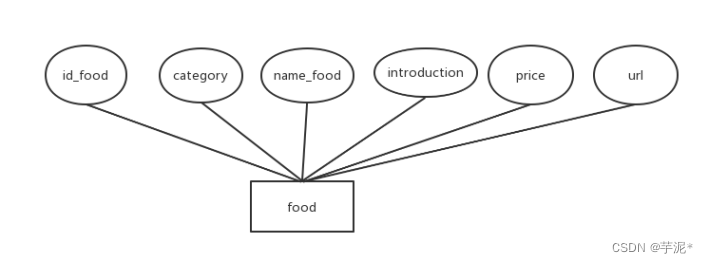

            2.2.6 food 表E-R图

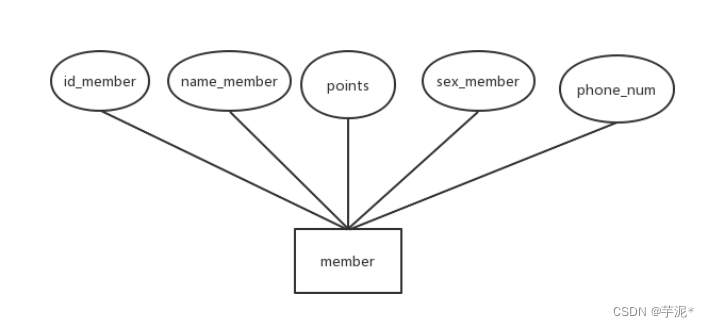

            2.2.7 member表E-R图

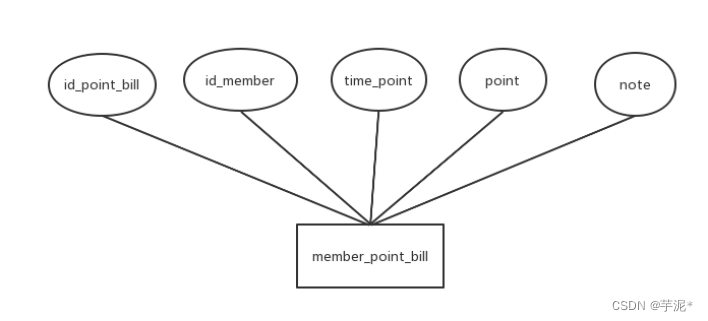

            2.2.8 member_point_bill表E-R图



            2.2.9 servers表E-R图

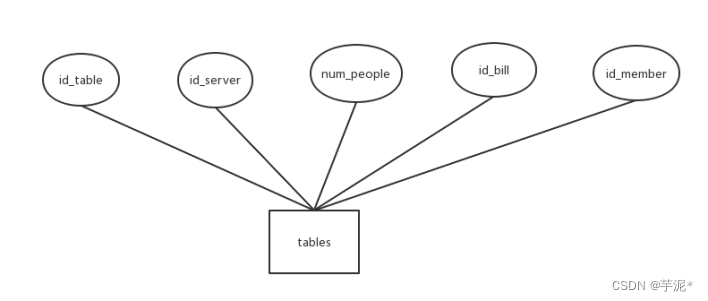

            2.2.10 tables表E-R图

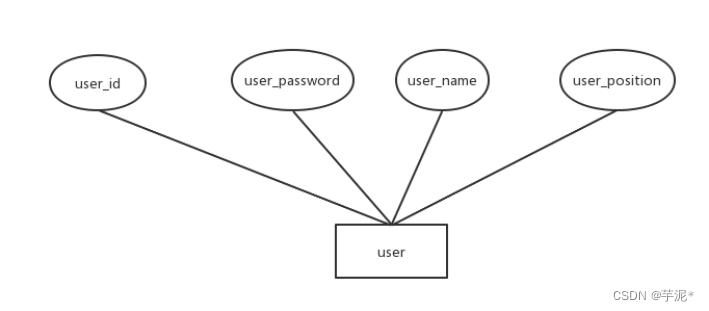

            2.2.11 user表E-R图



            3. 逻辑设计（表的设计）

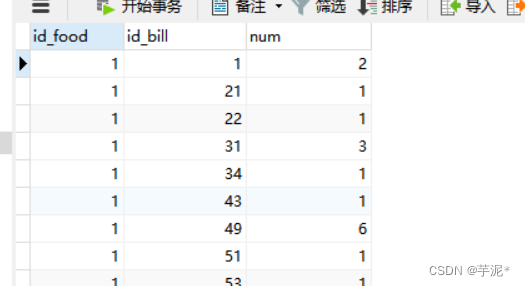

            ①bill_food表

            CREATE TABLE `bill_food` (
              `id_food` int NOT NULL,
              `id_bill` int NOT NULL,
              `num` int NOT NULL,
              PRIMARY KEY (`id_food`,`id_bill`),
              KEY `FK_bill_food2` (`id_bill`),
              CONSTRAINT `FK_bill_food` FOREIGN KEY (`id_food`) REFERENCES `food` (`id_food`) ON DELETE RESTRICT ON UPDATE RESTRICT,
              CONSTRAINT `FK_bill_food2` FOREIGN KEY (`id_bill`) REFERENCES `bills` (`id_bill`) ON DELETE RESTRICT ON UPDATE RESTRICT
            ) ;

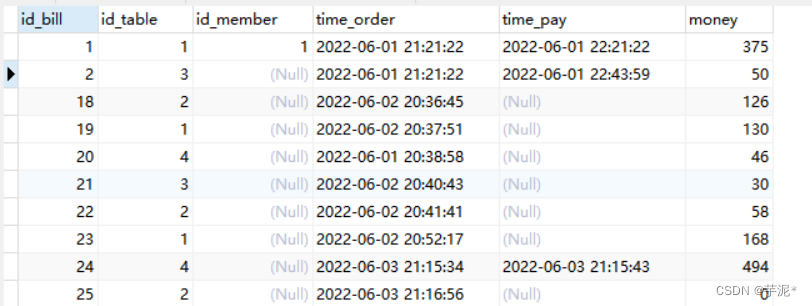

            ②bills表

            CREATE TABLE `bills` (
              `id_bill` int NOT NULL,
              `id_table` int NOT NULL,
              `id_member` int DEFAULT NULL,
              `time_order` datetime NOT NULL,
              `time_pay` datetime DEFAULT NULL,
              `money` int NOT NULL,
              PRIMARY KEY (`id_bill`),
              KEY `FK_bill_member` (`id_member`),
              KEY `FK_table_bill` (`id_table`),
              KEY `time_order` (`time_order`),
              CONSTRAINT `FK_bill_member` FOREIGN KEY (`id_member`) REFERENCES `member` (`id_member`) ON DELETE RESTRICT ON UPDATE RESTRICT,
              CONSTRAINT `FK_table_bill` FOREIGN KEY (`id_table`) REFERENCES `tables` (`id_table`) ON DELETE RESTRICT ON UPDATE RESTRICT
            ) ;




            ③categories表

            CREATE TABLE `categories` (
              `category` char(20) NOT NULL,
              PRIMARY KEY (`category`)
            );

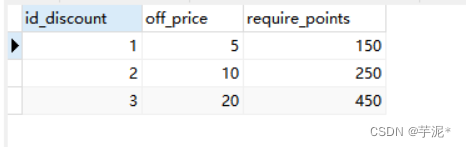

            ④discounts表

            CREATE TABLE `discounts` (
              `id_discount` int NOT NULL,
              `off_price` int NOT NULL,
              `require_points` int NOT NULL,
              PRIMARY KEY (`id_discount`)
            ) ;

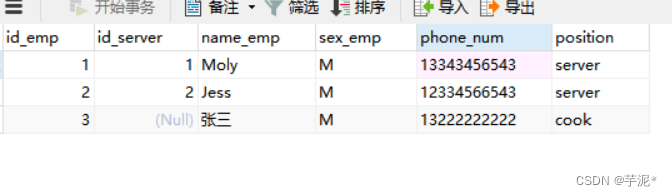

            ⑤emp表

            CREATE TABLE `emp` (
              `id_emp` int NOT NULL,
              `id_server` int DEFAULT NULL,
              `name_emp` char(20) NOT NULL,
              `sex_emp` char(1) DEFAULT NULL,
              `phone_num` char(11) DEFAULT NULL,
              `position` char(20) DEFAULT NULL,
              PRIMARY KEY (`id_emp`)
            );

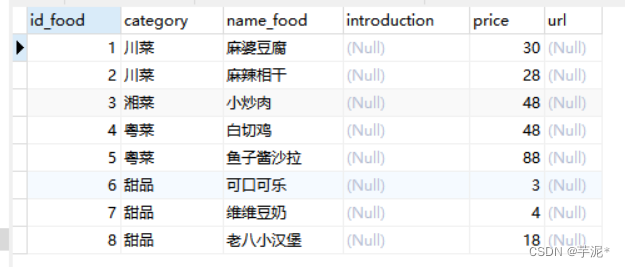

            ⑥food表

            CREATE TABLE `food` (
              `id_food` int NOT NULL,
              `category` char(20) NOT NULL,
              `name_food` char(20) NOT NULL,
              `introduction` char(100) DEFAULT NULL,
              `price` int NOT NULL,
              `url` char(100) DEFAULT NULL,
              PRIMARY KEY (`id_food`),
              KEY `FK_food_category` (`category`),
              CONSTRAINT `FK_food_category` FOREIGN KEY (`category`) REFERENCES `categories` (`category`) ON DELETE RESTRICT ON UPDATE RESTRICT
            ) ;

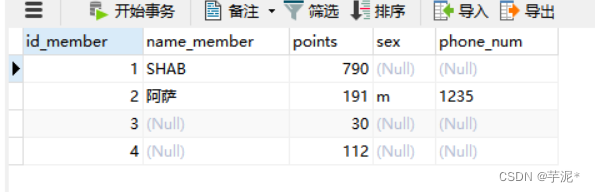

            ⑦member表

            CREATE TABLE `member` (
              `id_member` int NOT NULL,
              `name_member` char(20) DEFAULT NULL,
              `points` int NOT NULL,
              `sex` char(1) DEFAULT NULL,
              `phone_num` char(11) DEFAULT NULL,
              PRIMARY KEY (`id_member`)
            ) ;

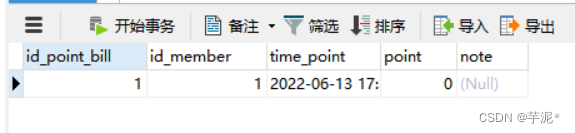

            ⑧member_point_bills表

            CREATE TABLE `member_point_bill` (
              `id_point_bill` int NOT NULL,
              `id_member` int NOT NULL,
              `time_point` datetime NOT NULL,
              `point` int NOT NULL,
              `note` char(20) DEFAULT NULL,
              PRIMARY KEY (`id_point_bill`),
              KEY `FK_member_point_bill` (`id_member`),
              CONSTRAINT `FK_member_point_bill` FOREIGN KEY (`id_member`) REFERENCES `member` (`id_member`) ON DELETE RESTRICT ON UPDATE RESTRICT
            ) ;

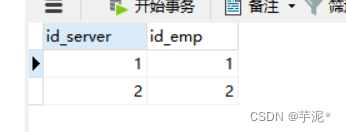

            ⑨servers表

            CREATE TABLE `servers` (
              `id_server` int NOT NULL,
              `id_emp` int NOT NULL,
              PRIMARY KEY (`id_server`),
              KEY `FK_to_server` (`id_emp`),
              CONSTRAINT `FK_to_server` FOREIGN KEY (`id_emp`) REFERENCES `emp` (`id_emp`) ON DELETE RESTRICT ON UPDATE RESTRICT
            ) ;

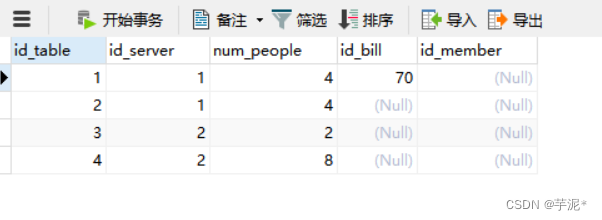

            ⑩tables表

            CREATE TABLE `tables` (
              `id_table` int NOT NULL,
              `id_server` int NOT NULL,
              `num_people` int NOT NULL,
              `id_bill` int DEFAULT NULL,
              `id_member` int DEFAULT NULL,
              PRIMARY KEY (`id_table`),
              KEY `FK_server_table` (`id_server`),
              CONSTRAINT `FK_server_table` FOREIGN KEY (`id_server`) REFERENCES `servers` (`id_server`) ON DELETE RESTRICT ON UPDATE RESTRICT
            ) ;

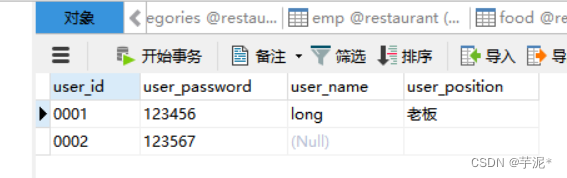

            11.user表

            CREATE TABLE `user` (
              `user_id` varchar(4) CHARACTER SET utf8 COLLATE utf8_general_ci NOT NULL,
              `user_password` varchar(255) NOT NULL,
              `user_name` varchar(255) DEFAULT NULL,
              `user_position` varchar(255) DEFAULT NULL,
              PRIMARY KEY (`user_id`)
            );




            三、 系统实现（主要体现以下几部分）

            1、系统采用的技术、方法、工具

            餐厅点餐系统采用pycharm tkinter库实现可视化，数据库管理用MySQL

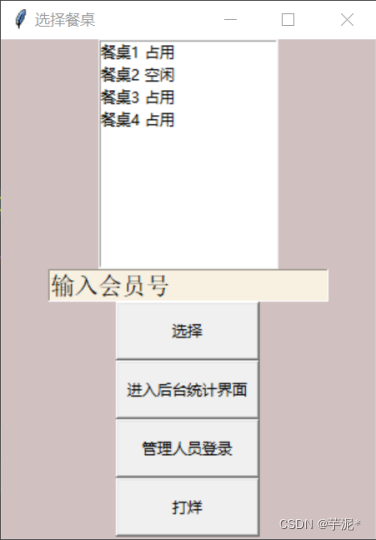

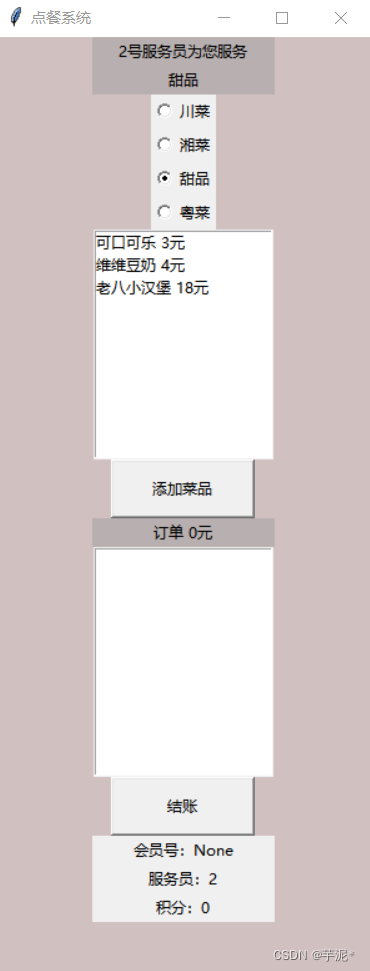

            2、效果图





            其他图就不展示了

            3、实现代码

            2.1 main.py

            def is_number(s):
                try:
                    float(s)
                    return True
                except ValueError:
                    pass
                try:
                    import unicodedata
                    unicodedata.numeric(s)
                    return True
                except (TypeError, ValueError):
                    pass
                return False
            # window
            import tkinter.messagebox
            import tkinter as tk  # 使用Tkinter前需要先导入
            import order
            import statistic
            from database import *
            import reig_manage
            table = db_get_table()
                #实例化
            window_table = tk.Tk()
            window_table.title('选择餐桌')
            window_table.geometry('300x400')
            window_table['bg']='#d0c0c0'
            listbox_table = tk.Listbox(window_table, listvariable = table)
            #listbox_table['bg']='#9ea4b8'
            for table_item in table:
                listbox_table.insert("end", table_item+" "+table[table_item][0])
            listbox_table.pack()
            #
            e_member = tk.Entry(window_table, show=None, font=('Arial', 14))
            e_member.insert(0,"输入会员号")
            e_member['bg']='#f8f0e0'
            e_member.pack()
            def submit_table():
                if listbox_table.curselection() == ():
                    tkinter.messagebox.showinfo(title='警告', message='请点击框内餐桌再选择')
                    return
                table_item = listbox_table.get(listbox_table.curselection())
                occupied = table[table_item[0:3]][0]
                if occupied=="占用":
                    tkinter.messagebox.showinfo(title='警告', message='当前餐桌有人')
                    return
                table_num = int(table_item[2:3])
                next_bill = db_sit(table_num)
                window_table.withdraw()
                member_id = e_member.get()
                if is_number(member_id):
                    member_id = int(member_id)
                else:
                    member_id = None
                order.open_order_table(table_num,next_bill,member_id)
            def enter_statistic():
                #window_table.withdraw()
                statistic.open()
            #登录
            def enter_manage():
               # window_table.withdraw()
                reig_manage.register_manage()
            #打样
            def close_shop():
                db_clear_table()
                table = db_get_table()
                listbox_table.delete(0,"end")
                for table_item in table:
                    listbox_table.insert("end", table_item+" "+table[table_item][0])
            button_select_table = tk.Button(window_table, text='选择', width=15, height=2, command=submit_table)
            button_select_table.pack()
            button_statistic = tk.Button(window_table, text='进入后台统计界面', width=15, height=2, command=enter_statistic)
            button_statistic.pack()
            button_statistic = tk.Button(window_table, text='管理人员登录', width=15, height=2, command=enter_manage)
            button_statistic.pack()
            button_statistic = tk.Button(window_table, text='打烊', width=15, height=2, command=close_shop)
            button_statistic.pack()
            # 第7步，主窗口循环显示
            window_table.mainloop()


            2.2 reig_manage.py

            import tkinter as tk  # 使用Tkinter前需要先导入
            from tkinter import messagebox
            from database_manage import *
            import manage
            from tkinter import *
            def register_manage():
                window = tk.Toplevel()
                window.title('后台登录页面')
                window['bg'] = '#d0c0c0'
                window.geometry('300x300')
                Label(window, text='管理人员登录').grid(row=0, column=0, columnspan=2)
                Label(window, text='用户名：').grid(row=1, column=0)
                name = Entry(window)
                name.grid(row=1, column=1)
                Label(window, text='密码：').grid(row=2, column=0, sticky=E)
                passwd = Entry(window, show='*')
                passwd.grid(row=2, column=1)
                def successful():
                    falg=db_get_user111(name,passwd)
                    if falg==1:
                        window.destroy()
                        manage.show()
                    else:
                        messagebox.showerror(title='wrong', message='登录失败，用户名或密码错误')
                Button(window, text='登录', command=successful).grid(row=3, column=0, columnspan=2)


            2.3 statistic.py

            import tkinter.messagebox
            import tkinter as tk  # 使用Tkinter前需要先导入
            from database import *
            def open():
                # 实例化object，建立窗口window
                window = tk.Toplevel()
                window.title('统计页面')
                window['bg']='#d0c0c0'
                window.geometry('300x500')
                data = []
                # 存放统计结果
                listbox = tk.Listbox(window, listvariable=data)
                # 日期输入框
                e_start = tk.Entry(window, show=None, font=('Arial', 14))
                e_start.insert(0,"起始日期")
                e_end = tk.Entry(window, show=None, font=('Arial', 14))  # 显示成明文形式
                e_end.insert(0,"终止日期")
                label_money = tk.Label(window, width=40, text="时间段内销售总额：空（请点击查询）")
                def get_sales():
                    sales = db_get_sales()
                    listbox.delete(0,"end")
                    for sale in sales:
                        listbox.insert("end",sale[0]+" 销售量"+str(sale[1]))
                def get_sales_time():
                    start_date = e_start.get()
                    end_date = e_end.get()
                    try:
                        datetime.datetime.strptime(start_date, '%Y-%m-%d')
                        datetime.datetime.strptime(end_date, '%Y-%m-%d')
                    except ValueError:
                        tkinter.messagebox.showinfo(title='警告', message='日期不合法，范例2021-02-03')
                        return
                    sales = db_get_sales_time(start_date, end_date)
                    listbox.delete(0,"end")
                    if sales == ():
                        tkinter.messagebox.showinfo(title='提示', message='该时间段没有销售')
                    for sale in sales:
                        listbox.insert("end",sale[0]+" 销售量"+str(sale[1]))
                def get_money_time():
                    start_date = e_start.get()
                    end_date = e_end.get()
                    try:
                        datetime.datetime.strptime(start_date, '%Y-%m-%d')
                        datetime.datetime.strptime(end_date, '%Y-%m-%d')
                    except ValueError:
                        tkinter.messagebox.showinfo(title='警告', message='日期不合法，范例2021-02-03')
                        return
                    money = db_get_money_time(start_date, end_date)
                    if money == None:
                        tkinter.messagebox.showinfo(title='提示', message='该时间段没有销售')
                        return
                    label_money.config(text = "时间段内销售总额："+str(money)+"元（点击第三个按钮刷新）")
                button_sales = tk.Button(window, text='按菜品销量排序（总）', width=20, height=2, command=get_sales)
                button_sales_time = tk.Button(window, text='按时间段销量排序', width=20, height=2, command=get_sales_time)
                button_sales_total = tk.Button(window, text='查询某时间段内销售总额', width=20, height=2, command=get_money_time)
                button_sales.pack()
                button_sales_time.pack()
                button_sales_total.pack()
                e_start.pack()
                e_end.pack()
                listbox.pack()
                label_money.pack()
                window.mainloop()


            2.4 order.py

            import tkinter.messagebox
            import tkinter as tk  # 使用Tkinter前需要先导入
            import discount
            from database import *
            food = {}
            bills = []
            # # bill_id = 0
            # member_id = 3
            # # server_id = 7
            # member_cent = 0
            # server_id = 0
            food = db_get_all_food()
            def open_order_table(table_id,bill_id,member_id):
                print("member_id:"+str(member_id))
                member_point = db_get_member_point(member_id)
                server_id = db_get_server_id(table_id)
                db_get_server_id(table_id)
                # 第1步，实例化object，建立窗口window
                window = tk.Toplevel()
                window['bg']='#d0c0c0'
                window.title('点餐系统')
                window.geometry('300x800')
                #在图形界面上创建一个标签label用以显示并放置
                var = tk.StringVar()  # 定义一个var用来将radiobutton的值和Label的值联系在一起.
                var.set("川菜")
                label_server = tk.Label(window, bg='#b8b0b0', width=20, text=str(server_id)+"号服务员为您服务")
                label_server.pack()
                label_food = tk.Label(window, bg='#b8b0b0', width=20, text="川菜")
                label_food.pack()
                label_order = tk.Label(window, bg='#b8b0b0', width=20, text="订单 " + "0元")
                # 对应菜品的显示
                listbox = tk.Listbox(window, listvariable=food["川菜"])
                for food_item in food[var.get()]:
                    listbox.insert("end", food_item)
                listbox_bill = tk.Listbox(window, listvariable=bills)
                # 定义选项触发函数功能
                def print_category():
                    #print(var.get())
                    label_food.config(text=var.get())
                    listbox.delete(0, "end")
                    for food_item in food[var.get()]:
                        listbox.insert("end", food_item)
                def add_bill(food_item):
                    bills.append(food_item)
                    bill_money=db_add_bill(bill_id,food_item.split(' ')[0])
                    listbox_bill.insert("end", food_item)
                    label_order.config(text="订单 " + str(bill_money) + "元")
                def submit_bill():
                    listbox_bill.delete(0, "end")
                    item_num = 0
                    label_order.config(text="订单 " + str(item_num) + "元")
                    db_submit_bill(member_id,bill_id)
                    window.destroy()
                    discount.open(member_point,member_id)
                def submit_food():
                    if listbox.curselection() == ():
                        tkinter.messagebox.showinfo(title='警告', message='请点击框内菜品才添加')
                        return
                    print(listbox.curselection())
                    food_item = listbox.get(listbox.curselection())
                    add_bill(food_item)
                    # 创建三个radiobutton选项，其中variable=var, value='A'的意思就是，当我们鼠标选中了其中一个选项，把value的值A放到变量var中，然后赋值给variable
                for category in food:
                    radiobutton = tk.Radiobutton(window, text=category, variable=var, value=category, command=print_category)
                    radiobutton.pack()
                listbox.pack()
                button_submit = tk.Button(window, text='添加菜品', width=15, height=2, command=submit_food)
                button_submit.pack()
                label_order.pack()
                listbox_bill.pack()
                button_pay = tk.Button(window, text='结账', width=15, height=2, command=submit_bill)
                button_pay.pack()
                label_member_id = tk.Label(window, width=20, text="会员号："+str(member_id))
                label_member_id.pack()
                label_server_id = tk.Label(window, width=20, text="服务员：" + str(server_id))
                label_server_id.pack()
                label_cent = tk.Label(window, width=20, text="积分：" + str(member_point))
                label_cent.pack()
                window.mainloop()


            2.5 manage.py

            import database_manage
            from tkinter import messagebox
            #import main
            import tkinter as tk  # 使用Tkinter前需要先导入
            from database_manage import *
            from tkinter import *
            def show():
                window = tk.Toplevel()
                window['bg'] = '#d0c0c0'
                window.title('后台页面')
                window.geometry('250x250')
                def inquire_menu():
                    window_menu = tk.Toplevel()
                    window_menu['bg'] = '#d0c0c0'
                    window_menu.title('所有菜品页面')
                    window_menu.geometry('220x230')
                    food = {}
                    food=database_manage.db_get_food()
                    var = tk.StringVar()
                    listbox = tk.Listbox(window_menu, listvariable=food)
                    #listbox.Text(window,wigth=100,height=300)
                    listbox.grid(row=0, column=6,ipadx=30,ipady=10,columnspan=5,rowspan=5)
                    listbox.insert("end", "id:  "+" 类别： "+" 名称："+" 价格：")
                    for food_item in food:
                        #listbox.insert("end", food[food_item][0])
                        listbox.insert("end", food[food_item][0]+"    "+food[food_item][1]+"    "+food[food_item][2]+"    "+food[food_item][3])
                def add_menu():
                    window_add = tk.Toplevel()
                    window_add['bg'] = '#d0c0c0'
                    window_add.title('添加菜品页面')
                    window_add.geometry('300x200')
                    Label(window_add, text='id_food').grid(row=1, column=0)
                    id = Entry(window_add)
                    id.grid(row=1, column=1)
                    Label(window_add, text='category').grid(row=2, column=0)
                    category = Entry(window_add)
                    category.grid(row=2, column=1)
                    Label(window_add, text='name').grid(row=3, column=0)
                    name = Entry(window_add)
                    name.grid(row=3, column=1)
                    Label(window_add, text='price').grid(row=4, column=0)
                    price = Entry(window_add)
                    price.grid(row=4, column=1)
                    def add():
                        falg=db_get_all_categories(category)
                        if(falg==1):
                            ret=db_get_add(id,category,name,price)
                            if(ret==1):
                                messagebox.showinfo(title='successful', message='添加成功')
                            else:
                                messagebox.showinfo(title='失败', message='由于food表的外键约束，不能在pycharm里用语句添加')
                        else:
                            messagebox.showinfo(title='失败', message='category错误')
                    Button(window_add, text='添加', command=add).grid(row=6, column=2, columnspan=2)
                def alter_menu():
                    window_alter = tk.Toplevel()
                    window_alter['bg'] = '#d0c0c0'
                    window_alter.title('修改菜品页面')
                    window_alter.geometry('300x200')
                    Label(window_alter, text='菜品名称').grid(row=1, column=0)
                    name = Entry(window_alter)
                    name.grid(row=1, column=1)
                    Label(window_alter, text='菜品价格').grid(row=2, column=0)
                    price = Entry(window_alter)
                    price.grid(row=2, column=1)
                    def alters():
                        falg = db_alter(name,price)
                        if falg == 1:
                            messagebox.showinfo(title='successful', message='修改成功')
                        else:
                            messagebox.showinfo(title='失败', message='修改失败')
                    Button(window_alter, text='修改', command=alters).grid(row=6, column=2, columnspan=2)
                def delete_menu():
                    window_delete = tk.Toplevel()
                    window_delete['bg'] = '#d0c0c0'
                    window_delete.title('删除菜品页面')
                    window_delete.geometry('300x200')
                    Label(window_delete, text='菜品名称').grid(row=1, column=0)
                    name = Entry(window_delete)
                    name.grid(row=1, column=1)
                    def deletes():
                        falg = db_delete(name)
                        if falg == 1:
                            messagebox.showinfo(title='successful', message='删除成功')
                        else:
                            messagebox.showinfo(title='失败', message='由于food表的外键约束，不能在pycharm里用语句删除')
                    Button(window_delete, text='删除', command=deletes).grid(row=6, column=2, columnspan=2)
                def add_member():
                    window_addm = tk.Toplevel()
                    window_addm['bg'] = '#d0c0c0'
                    window_addm.title('增加会员页面')
                    window_addm.geometry('300x200')
                    Label(window_addm, text='id_member').grid(row=0, column=0)
                    member = Entry(window_addm)
                    member.grid(row=0, column=1)
                    Label(window_addm, text='name').grid(row=1, column=0)
                    name = Entry(window_addm)
                    name.grid(row=1, column=1)
                    Label(window_addm, text='sex').grid(row=2, column=0)
                    sex = Entry(window_addm)
                    sex.grid(row=2, column=1)
                    Label(window_addm, text='phone').grid(row=3, column=0)
                    phone = Entry(window_addm)
                    phone.grid(row=3, column=1)
                    def adds():
                        falg = db_add_member(member,name,sex,phone)
                        if falg == 1:
                            messagebox.showinfo(title='successful', message='增加成功')
                        else:
                            messagebox.showinfo(title='失败', message='增加失败')
                    Button(window_addm, text='增加', command=adds).grid(row=6, column=2, columnspan=2)
                tk.Button(window, text='查询所有菜品', width=15, height=2,command=inquire_menu).grid(row=0, column=1)
                tk.Button(window, text='添加菜品', width=15, height=2,command=add_menu).grid(row=1, column=1)
                tk.Button(window, text='修改菜品价格', width=15, height=2,command=alter_menu).grid(row=2, column=1)
                tk.Button(window, text='删除菜品', width=15, height=2,command=delete_menu).grid(row=3, column=1)
                tk.Button(window, text='增加会员', width=15, height=2, command=add_member).grid(row=4, column=1)

                window.mainloop()


            2.6 discount.py

            import tkinter.messagebox
            import tkinter as tk  # 使用Tkinter前需要先导入
            from database import *
            def open(points,member_id):
                # 第1步，实例化object，建立窗口window
                window = tk.Toplevel()
                # 第2步，给窗口的可视化起名字
                window.title('统计系统')
                # 第3步，设定窗口的大小(长 * 宽)
                window.geometry('300x500')
                window['bg']='#d0c0c0'
                # 优惠
                label_discount = tk.Label(window, bg='#b8b0b0', width=30, text ="选择优惠")
                label_discount.pack()
                # 存放统计结果
                discount = db_get_discountlist()
                print(discount)
                listbox = tk.Listbox(window, listvariable=discount)
                for discount_item in discount:
                    if points < discount[discount_item][1]: # 积分不够规则所需
                        continue
                    off_price = str(discount[discount_item][0])
                    require_points = str(discount[discount_item][1])
                    listbox.insert("end","花费"+require_points+"积分获得"+off_price+"元优惠" )
                listbox.pack()
                def commit_discount():
                    if listbox.curselection() == ():
                        tkinter.messagebox.showinfo(title='警告', message='请点击框内优惠才提交')
                        return
                    db_commit_discount(discount[listbox.curselection()[0]+1][1],member_id)
                    cancle()
                def cancle():
                    window.destroy()
                    tkinter.messagebox.showinfo(title='结账', message='结账成功，欢迎下次再来！')
                # 确认优惠
                button_commit = tk.Button(window, text='使用', width=15, height=2, command=commit_discount)
                button_commit.pack()
                button_cancel = tk.Button(window, text='不使用', width=15, height=2, command=cancle)
                button_cancel.pack()
                window.mainloop()


            2.7 database_manage.py

            import pymysql
            def db_get_user111(name,passwd):
                db = pymysql.connect(host="localhost", user="root", password="123456", db="restaurant", charset="utf8")
                # 使用 cursor() 方法创建一个游标对象 cursor
                cursor = db.cursor()
                try:
                    sql = """select user_id,user_password from user"""
                    entry1 = name.get()
                    entry2 = passwd.get()
                    cursor.execute(sql)
                    results = cursor.fetchall()
                    for row in results:
                        uid=row[0]
                        pwd=row[1]
                        if entry1==uid and entry2==pwd:
                            db.close()
                            return 1
                    return 0
                except:
                    db.rollback()
                    db.close()
                    return 0
            def db_get_food():
                db = pymysql.connect(host='localhost', user='root', password='123456', db="restaurant", charset="utf8")
                cursor = db.cursor()
                food = {}
                sql = """select id_food,category,name_food,price from food"""
                try:
                    # 执行sql
                    cursor.execute(sql)
                    # 处理结果集
                    results = cursor.fetchall()
                    for row in results:
                        food[str(row[0])]=[str(row[0]),row[1],row[2],str(row[3])]
                    db.close()
                    return food
                except Exception as e:
                    # print(e)
                    print('查询所有数据失败')
                    db.rollback()
                    db.close()
                    return 0
            def db_get_all_categories(category):
                # 打开数据库连接
                db = pymysql.connect(host="localhost", user="root", password="123456", db="restaurant", charset="utf8")
                # 使用 cursor() 方法创建一个游标对象 cursor
                cursor = db.cursor()
                sql = """select category from categories"""
                try:
                    category = category.get()
                    cursor.execute(sql)
                    results = cursor.fetchall()
                    for row in results:
                        if category == row[0]:
                            return 1
                    return 0
                except:
                    print("wrong:db_get_all_categories")
                    db.rollback()
                    db.close()
                    return 0
            def db_get_add(id,category,name,price):
                db = pymysql.connect(host='localhost', user='root', password='123456', db="restaurant", charset="utf8")
                cursor = db.cursor()
                try:
                    sql = """insert into food(id_food,category,name_food,introduction,price,url) values(%s,%s,%s,%s,%s,%s)"""
                    value = (id, category, name, 'null', price, 'NULL')
                    # 执行sql
                    cursor.execute(sql,value)
                    db.commit()
                    db.close()
                    return 1
                except Exception as e:
                    print(e)
                    db.rollback()
                    db.close()
                    return 0
            def db_alter(name,price):
                db = pymysql.connect(host='localhost', user='root', password='123456', db="restaurant", charset="utf8")
                cursor = db.cursor()
                try:
                    price = price.get()
                    name = name.get()
                    sql = """update food set price = %s where name_food = %s"""
                    value = ( price , name )
                    # 执行sql
                    cursor.execute(sql,value)
                    db.commit()
                    db.close()
                    return 1
                except Exception as e:
                    print(e)
                    db.rollback()
                    db.close()
                    return 0
            def db_delete(name):
                db = pymysql.connect(host='localhost', user='root', password='123456', db="restaurant", charset="utf8")
                cursor = db.cursor()
                try:
                    name = name.get()
                    sql = """delete from food where name_food=%s"""
                    #value = (name)
                    # 执行sql
                    cursor.execute(sql, name)
                    db.commit()
                    db.close()
                    return 1
                except Exception as e:
                    print(e)
                    db.rollback()
                    db.close()
                    return 0
            def db_add_member(member,name,sex,phone):
                db = pymysql.connect(host='localhost', user='root', password='123456', db="restaurant", charset="utf8")
                cursor = db.cursor()
                try:
                    member=member.get()
                    name = name.get()
                    sex=sex.get()
                    phone=phone.get()
                    sql = """insert into member(id_member,name_member,points,sex,phone_num) values(%s,%s,0,%s,%s) """
                    value = (member,name,sex,phone)
                    # 执行sql
                    cursor.execute(sql, value)
                    db.commit()
                    db.close()
                    return 1
                except Exception as e:
                    print(e)
                    db.rollback()
                    db.close()
                    return 0


            2.8 database.py

            import datetime
            #import reig_manage
            import pymysql
            def db_get_table():
                # 打开数据库连接，创建一个数据库对象
                db = pymysql.connect(host="localhost", user="root", password="123456", db="restaurant", charset="utf8")
                # 使用 cursor() 方法创建一个游标对象 cursor
                cursor = db.cursor()
                sql = """select id_table, id_server, id_bill
                            from tables"""
                try:
                    tables={}
                    cursor.execute(sql) # 执行sql语句
                    results = cursor.fetchall()      #获取所有数据
                    for row in results:
                        print(row)
                        occupied = row[2]
                        if occupied:
                           occupied = "占用"
                        else:
                            occupied = "空闲"
                        server = row[1]
                        tables["餐桌"+str(row[0])]=[occupied,server]
                    db.close()
                    return tables
                except:
                    print("wrong:get_table")
                    db.rollback()
                    db.close()
                    return {}
            # 找到下一个bill的id返回，并且将其设置成当前选择的table的bill，表示入座
            def db_sit(table_num):
                # 打开数据库连接
                db = pymysql.connect(host="localhost", user="root", password="123456", db="restaurant", charset="utf8")
                # 使用 cursor() 方法创建一个游标对象 cursor
                cursor = db.cursor()
                sql = """select max(id_bill)
                                from bills"""
                try:
                    max = 0
                    cursor.execute(sql)
                    results = cursor.fetchall()
                    for row in results:
                        max = row[0]
                    sql2 = """insert into bills(id_bill,id_table,id_member,time_order,money)
                                values(%d,%d,NULL,"%s",0)"""% \
                           (max+1,table_num,datetime.datetime.now().strftime('%Y-%m-%d %H:%M:%S'))
                    cursor.execute(sql2)
                    sql3 = """update tables
                            set id_bill=%d
                            where id_table = %d
                            """ % \
                           (max+1,table_num)
                    cursor.execute(sql3)
                    db.commit()   #插入数据
                    db.close()
                    return max+1
                except:
                    print("wrong:db_sit")
                    db.rollback()
                    db.close()
                    return 0
            def db_get_server_id(table_id):
                # 打开数据库连接
                db = pymysql.connect(host="localhost", user="root", password="123456", db="restaurant", charset="utf8")
                # 使用 cursor() 方法创建一个游标对象 cursor
                cursor = db.cursor()
                sql = """select id_server
                                from tables
                                where id_table = %d"""%(table_id)
                print(sql)
                try:
                    server_id = 0
                    cursor.execute(sql)
                    results = cursor.fetchall()
                    for row in results:
                        server_id = row[0]
                    db.close()
                    return server_id
                except:
                    print("wrong:db_get_server_id")
                    db.rollback()
                    db.close()
                    return 0
            def db_get_all_food():
                # 打开数据库连接
                db = pymysql.connect(host="localhost", user="root", password="123456", db="restaurant", charset="utf8")
                # 使用 cursor() 方法创建一个游标对象 cursor
                cursor = db.cursor()
                food = {}
                sql = """select category from categories"""
                print(sql)
                try:
                    cursor.execute(sql)
                    results = cursor.fetchall()
                    for row in results:
                        food[row[0]]=[]
                    sql2 = """select category, name_food, price
                                from food
                            """
                    cursor.execute(sql2)
                    results = cursor.fetchall()
                    for row in results:
                        food[row[0]].append(row[1]+" "+str(row[2])+"元")
                    db.close()
                    return food
                except:
                    print("wrong:db_get_all_food")
                    db.rollback()
                    db.close()
                    return 0
            def db_add_bill(bill_id,food_name):
                # 打开数据库连接
                db = pymysql.connect(host="localhost", user="root", password="123456", db="restaurant", charset="utf8")
                # 使用 cursor() 方法创建一个游标对象 cursor
                cursor = db.cursor()
                food = {}
                try:
                    current_money = 0
                    sql_find_food_id = """select id_food, price
                                from food
                                where name_food = "%s" """ %(food_name)
                    cursor.execute(sql_find_food_id)
                    results = cursor.fetchall()
                    for row in results:
                        id = row[0]
                        price = row[1]
                    sql_findexistsfood = """select *
                                from bill_food
                                where id_food = %d and id_bill = %d
                                """%(id,bill_id)
                    cursor.execute(sql_findexistsfood)
                    if cursor.fetchall()==():
                        sql2 = """insert into bill_food
                                    values(%d,%d,1)
                                    """%(id,bill_id)
                    else:
                        sql2 = """update bill_food
                                    set num =num +1
                                where id_food = %d and id_bill = %d
                                                """ % (id, bill_id)
                    cursor.execute(sql2)
                    sql3 = """update bills
                                set money = money+%d
                                where id_bill = %d
                                        """ % (price, bill_id)
                    cursor.execute(sql3)
                    db.commit()
                    sql4 = """select money
                                from bills
                                where id_bill = %d
                                        """ % (bill_id)
                    cursor.execute(sql4)
                    results = cursor.fetchall()
                    for row in results:
                        current_money = row[0]
                        print(current_money)
                        db.close()
                        return current_money
                except:
                    print("wrong:db_add_bill")
                    db.rollback()
                    db.close()
                    return 0
            def db_submit_bill(member_id,id_bill):
                # 打开数据库连接
                db = pymysql.connect(host="localhost", user="root", password="123456", db="restaurant", charset="utf8")
                # 使用 cursor() 方法创建一个游标对象 cursor
                cursor = db.cursor()
                try:
                    sql = """update tables
                            set id_bill = NULL
                            where id_bill = %d"""%(id_bill)
                    cursor.execute(sql)
                    sql2 = """update bills
                            set time_pay = "%s"
                            where id_bill = %d"""%(datetime.datetime.now().strftime('%Y-%m-%d %H:%M:%S'),id_bill)
                    cursor.execute(sql2)
                    if member_id != None:
                        sql3 = """select money
                                    from bills
                                    where id_bill = %d
                                            """ % (id_bill)
                        cursor.execute(sql3)
                        results = cursor.fetchall()
                        for row in results:
                            current_money = row[0]
                        sql4 = """update member
                                    set points = points+ %s
                                    where id_member = %d""" % (current_money,member_id)
                        cursor.execute(sql4)
                    db.commit()
                    db.close()
                except:
                    print("wrong:db_submit_bill")
                    db.rollback()
                    db.close()
            def db_get_sales():
                # 打开数据库连接
                db = pymysql.connect(host="localhost", user="root", password="123456", db="restaurant", charset="utf8")
                # 使用 cursor() 方法创建一个游标对象 cursor
                cursor = db.cursor()
                try:
                    sql = """SELECT name_food, sum(num)
                            FROM bill_food natural join food
                            group by id_food
                            order by sum(num) desc"""
                    cursor.execute(sql)
                    results = cursor.fetchall()
                    db.close()
                    return results
                except:
                    print("wrong:db_get_sales")
                    db.rollback()
                    db.close()
                    return ()
            def db_get_sales_time(start_time, end_time):
                # 打开数据库连接
                db = pymysql.connect(host="localhost", user="root", password="123456", db="restaurant", charset="utf8")
                # 使用 cursor() 方法创建一个游标对象 cursor
                cursor = db.cursor()
                try:
                    sql = """SELECT name_food, sum(num)
                            FROM bill_food natural join bills natural join food
                            where time_pay between "%s 00:00:00" and "%s 00:00:00"
                            group by id_food
                            order by sum(num) desc;"""%(start_time,end_time)
                    cursor.execute(sql)
                    results = cursor.fetchall()
                    db.close()
                    return results
                except:
                    print("wrong:db_get_sales_time")
                    db.rollback()
                    db.close()
                    return ()
            def db_get_money_time(start_time, end_time):
                # 打开数据库连接
                db = pymysql.connect(host="localhost", user="root", password="123456", db="restaurant", charset="utf8")
                # 使用 cursor() 方法创建一个游标对象 cursor
                cursor = db.cursor()
                try:
                    sql = """SELECT sum(money)
                            FROM bills
                                where time_pay between "%s 00:00:00" and "%s 00:00:00"
                                """ % (start_time, end_time)
                    cursor.execute(sql)
                    results = cursor.fetchall()
                    for row in results:
                        return row[0]
                    db.close()
                    return 0
                except:
                    print("wrong:db_get_money_time")
                    db.rollback()
                    db.close()
                    return 0
            def db_clear_table():
                # 打开数据库连接
                db = pymysql.connect(host="localhost", user="root", password="123456", db="restaurant", charset="utf8")
                # 使用 cursor() 方法创建一个游标对象 cursor
                cursor = db.cursor()
                try:
                    sql = """update tables
                            set id_bill = NULL
                            where id_table <> 100"""
                    cursor.execute(sql)
                    db.commit()
                    db.close()
                except:
                    print("wrong:db_clear_table")
                    db.rollback()
                    db.close()
            def db_get_member_point(member_id):
                # 打开数据库连接
                db = pymysql.connect(host="localhost", user="root", password="123456", db="restaurant", charset="utf8")
                # 使用 cursor() 方法创建一个游标对象 cursor
                cursor = db.cursor()
                try:
                    if member_id == None:
                        return 0
                    sql = """select points
                                from member
                                where id_member = %s"""%(member_id)
                    cursor.execute(sql)
                    results = cursor.fetchall()
                    if results == ():
                        sql2 = """insert into member
                                values(%s,null,0,null,null)""" % (member_id)
                        cursor.execute(sql2)
                        db.commit()
                        db.close()
                        return 0
                    db.close()
                    for row in results:
                        return row[0]
                except:
                    print("wrong:db_ensure_member_id")
                    db.rollback()
                    db.close()
            def db_get_discountlist():
                # 打开数据库连接
                db = pymysql.connect(host="localhost", user="root", password="123456", db="restaurant", charset="utf8")
                # 使用 cursor() 方法创建一个游标对象 cursor
                cursor = db.cursor()
                discount = {}
                sql = """select * from discounts"""
                print(sql)
                try:
                    cursor.execute(sql)
                    results = cursor.fetchall()
                    for row in results:
                        discount[row[0]] = [row[1],row[2]]
                    db.close()
                    return discount
                except:
                    print("wrong:db_get_discountlist")
                    db.rollback()
                    db.close()
                    return 0
            def db_commit_discount(points,member_id):
                # 打开数据库连接
                db = pymysql.connect(host="localhost", user="root", password="123456", db="restaurant", charset="utf8")
                # 使用 cursor() 方法创建一个游标对象 cursor
                cursor = db.cursor()
                discount = {}
                sql = """update member
                        set points = points - %s
                        where id_member = %s"""%(points,member_id)
                try:
                    cursor.execute(sql)
                    db.commit()
                    db.close()
                except:
                    print("wrong:db_commit_discount")
                    db.rollback()
                    db.close()
                    return 0


            四、源码获取

            餐厅点餐系统
