Kafka 集群配置

准备

下载统一版本Kafka服务包至三台不同的服务器上

文章使用版本为 kafka_2.13-3.5.0.tgz 下载地址

jdk版本为 Adopt JDK-17 OpenJDK17U-jdk_x64_linux_hotspot_17.0.7_7.tar.gz 下载地址

配置流程

Jaas(Java Authentication and Authorization Service )文件

        在kafka包解压目录下的 config 目录下新建zookeeper认证所需jaas文件，文件名随意，以 .conf 结尾即可

        文件内容如下

        user_{username}为固定写法 {username} 为用户名 密码为双引号内容

        注意，这里zookeeper的jaas有三个用户名和密码分别对应着三台kafka broker去认证时使用的用户名和密码，每一台上的zookeeper的jaas文件内容建议完全相同

Server {
       org.apache.zookeeper.server.auth.DigestLoginModule required
       user_super="super-sec"
       user_kafkabroker1="kafkabroker1-sec"
       user_kafkabroker2="kafkabroker2-sec"
       user_kafkabroker3="kafkabroker3-sec";
};

        在相同目录下建立kafka所需认证jaas文件

        以下是三台服务器中其中一台的kafka jaas认证文件内容，Client内容为本台机器上的broker认证本台机器上的zookeeper的用户名和密码 ( 注意最后一行和倒数第二行需要有分号！！ ) KafkaServer端有一对 username="kbroker1"  password="kbroker1-sec" 是内部brokers之间进行认证所用账号密码但是本文内部broker配置为ssl链接，去掉应该也没事若不同则加一下

        当然每个broker的KafkaServer段也需要有定义这个用户名和密码( 对应  user_kbroker1="kbroker1-sec" ）   user_client="client-sec" 为外部客户端认证时所需用户名密码

这里为了方便，全部brokers共享一个账号，客户端user_client(也就是连接Kakfa时的producer、consumer或者编程语言SDK读取或配置客户端jaas文件时)也为统一用户名密码

KafkaServer {
   org.apache.kafka.common.security.plain.PlainLoginModule required
   username="kbroker1"
   password="kbroker1-sec"
   user_kbroker1="kbroker1-sec"
   user_client="client-sec";
};
Client {
   org.apache.zookeeper.server.auth.DigestLoginModule required
   username="kafkabroker3"
   password="kafkabroker3-sec";
};

另外两台用户名密码如下

KafkaServer {
   org.apache.kafka.common.security.plain.PlainLoginModule required
   username="kbroker1"
   password="kbroker1-sec"
   user_kbroker1="kbroker1-sec"
   user_client="client-sec";
};
Client {
   org.apache.zookeeper.server.auth.DigestLoginModule required
   username="kafkabroker1"
   password="kafkabroker1-sec";
};

KafkaServer {
   org.apache.kafka.common.security.plain.PlainLoginModule required
   username="kbroker1"
   password="kbroker1-sec"
   user_kbroker1="kbroker1-sec"
   user_client="client-sec";
};
Client {
   org.apache.zookeeper.server.auth.DigestLoginModule required
   username="kafkabroker2"
   password="kafkabroker2-sec";
};

zookeeper 配置文件

同样是在config目录下编辑zookeeper.properties文件

# Licensed to the Apache Software Foundation (ASF) under one or more
# contributor license agreements.  See the NOTICE file distributed with
# this work for additional information regarding copyright ownership.
# The ASF licenses this file to You under the Apache License, Version 2.0
# (the "License"); you may not use this file except in compliance with
# the License.  You may obtain a copy of the License at
#
#    http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.
# the directory where the snapshot is stored.
dataDir=/opt/kafka/zookeeper-dir
dataLogDir=/opt/kafka/zookeeper-log
# the port at which the clients will connect
clientPort=2181
# disable the per-ip limit on the number of connections since this is a non-production config
# 一个ip最多可以对这个zookeeper服务进行连接的数量
maxClientCnxns=5
# Disable the adminserver by default to avoid port conflicts.
# Set the port to something non-conflicting if choosing to enable this
admin.enableServer=false
# admin.serverPort=8080
tickTime=2000
initLimit=5
syncLimit=2
server.1=1.1.1.1:2182:1999
server.2=2.2.2.2:2182:1999
server.3=3.3.3.3:2182:1999
# security
# 开启zookeeper sasl认证必须配置
authProvider.sasl=org.apache.zookeeper.server.auth.SASLAuthenticationProvider
maxClientCnxns=5
# 这里可以设置为false 同样设置zookeeper jaas认证也无效了
sessionRequireClientSASLAuth=true
jaasLoginRenew=360000000

注意 clientPort与 <外网ip>:<内部互联连端口>:<选举专用端口> 这些端口要区分开来 不然zookeeper服务启动会报错，三台配置基本一直

注意 server.=<外网ip> 若是连接本机有问题，可以将<外网ip>换成0.0.0.0

zookeeper启动脚本如下

#!/bin/bash
export KAFKA_OPTS="-Djava.security.auth.login.config=/opt/kafka/kafka-server/config/zk_jaas.conf"
nohup /opt/kafka/kafka-server/bin/zookeeper-server-start.sh /opt/kafka/kafka-server/config/zookeeper.properties > kafka-zookeeper-start.log 2>&1 &

使用export 导出KAFKA_OPTS中的变量，让zookeeper启动时加载jaas认证文件，参数key为

-Djava.security.auth.login.config

nohup 可以让zookeeper在后台运行，不占用终端，滚动日志可以在 kafka-zookeeper-start.log 文件查看，若想滚动查看日志可以用

tail -f kafka-zookeeper-start.log

SSL自签名

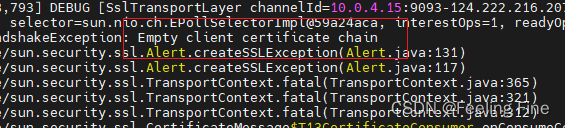

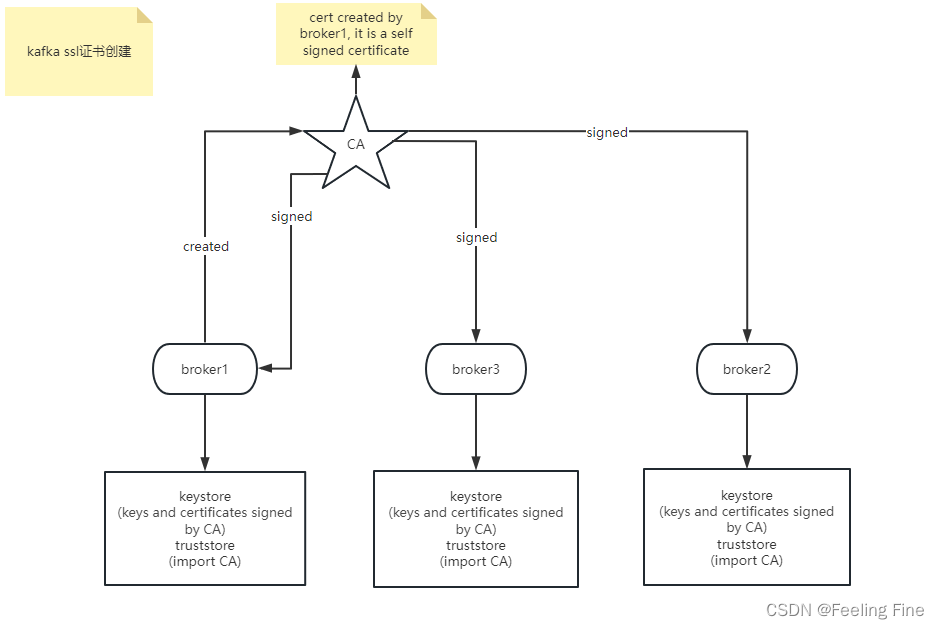

    这个地方卡住很久，遇到了些bug都是关于自签证书的问题，文章用下图说明SSL证书在kafka中的使用流程 每个keystore包含数字签名和证书

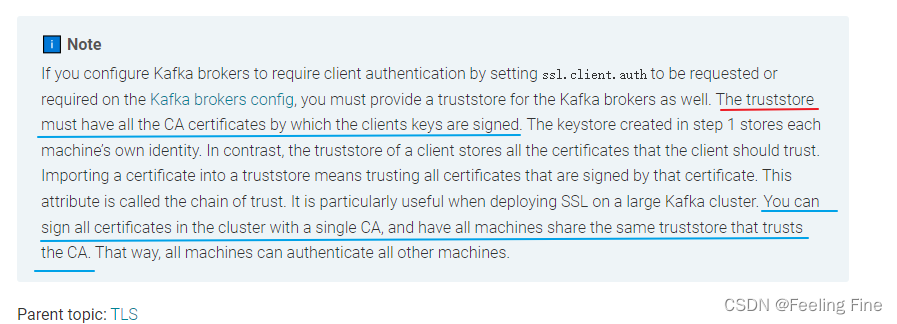

        每台机器上都应该有自己的keystore与truststore文件，证书可以每台上都使用openssl生成一张，但是，要把每台机器上的证书必须互相导入到其他borkers的truststore与keystore中，而且每台机器上的keystore还需要多次导入所有证书签名之后生成的证书与数字签名。不然在brokers互相创建SSL隧道时会有各种问题，例如下图，将broker1机器上生成的kafka.client.truststore.jks直接 scp 传输到到broker2 后使用，broker1 与 broker2建立SSL隧道时，kafka config 目录下log4j.properties修改TRACE级别日志记录如下

 参考

原文连接

参考连接2

 很多网站上面只是做单台机器或者单个证书的全部生成过程，这里记录下自己的创建流程

 注意，全局只生成了一次CA ，仅包含一个 ca-cert 与 ca-key

参考如下



 部署SSL 创建密钥与证书，创建自签名的颁发机构，证书签名

 文件含义

 keystore 可以存储私钥、证书和对称密钥的存储库。

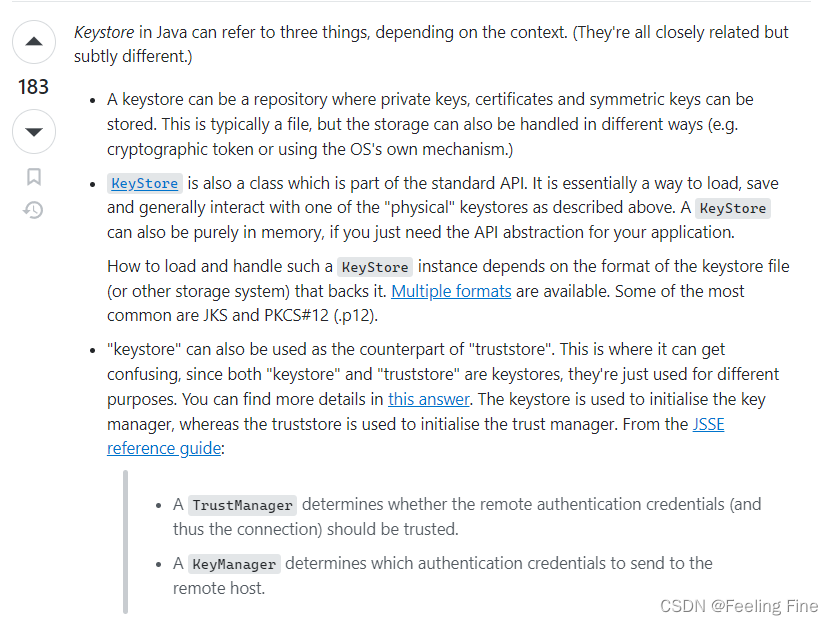

 引用stackoverflow的回答



 ca-cert 具体证书

 ca-key 证书私钥

 ca-password 颁发机构密钥

 cert-file 导出未签名的证书文件

 cert-signed 带有数字签名的证书

 首先在每个机器上面都要创建keystore密钥库

keytool命令无效可以去JAVA_HOME/bin目录下找

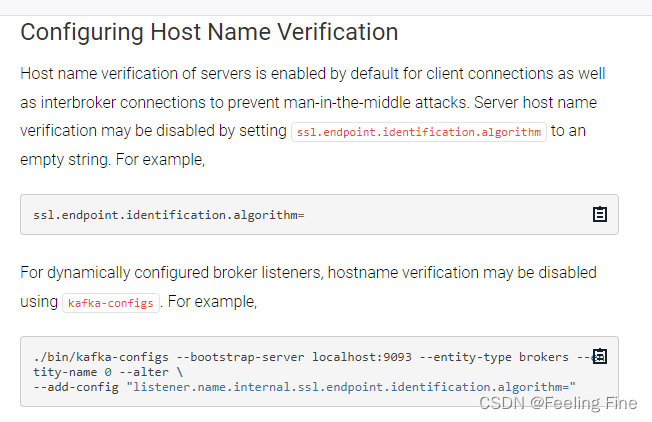

SSL hostname校验可通过两种方式配置

在kafka的配置文件中添加以下配置取消校验

ssl.endpoint.identification.algorithm=

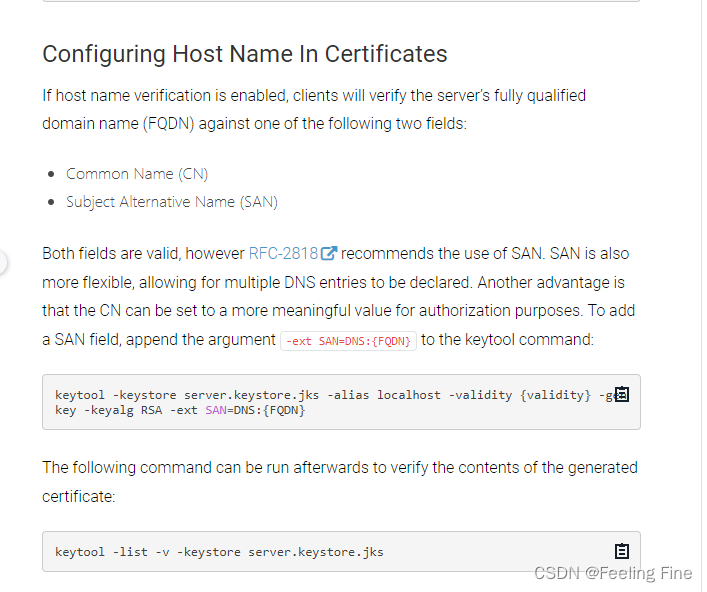

或配置CN与SAN分别为hostname与FQDN什么是FQDN



 文章采用前者，忽略SSL对hostname的认证并按照SAN格式创建keystore

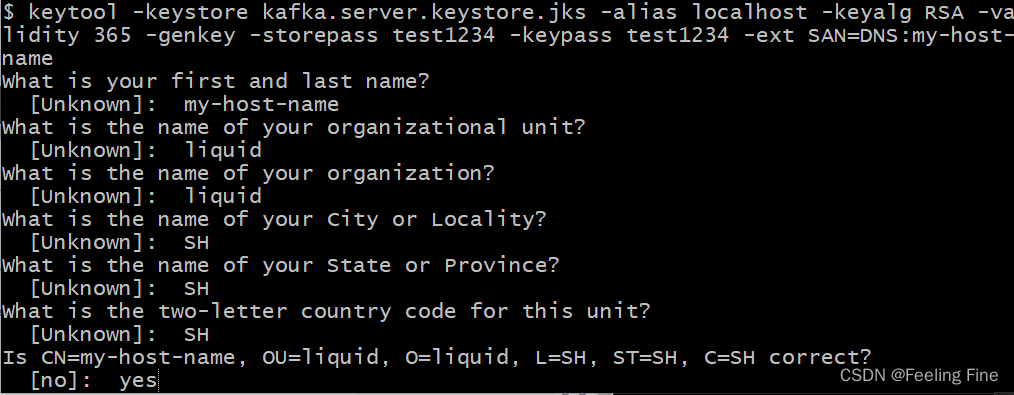

keytool -keystore kafka.server.keystore.jks -alias localhost -keyalg RSA -validity {validity} -genkey -storepass {keystore-pass} -keypass {key-pass} -dname {distinguished-name} -ext SAN=DNS:{hostname}

       -alias 后面用 hostname，localhost与hostname都可以

        {validity} 为过期时间 自签可以长一点 例 9999

        {keystore-pass} 与 {key-pass} 为密码，建议设为同一个值

        -ext SAN=DNS:{hostname} 注意，必须为hostname （终端 键入hostname查看）

 这里my-host-name可用localhost代替  或者用VPS云服务器专属的hostname



         kafka.ser.keystore.jks生成结束

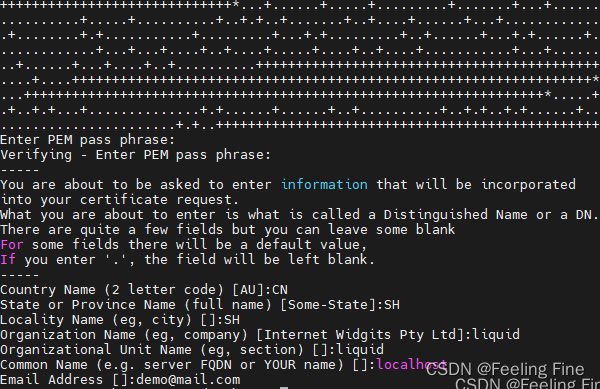

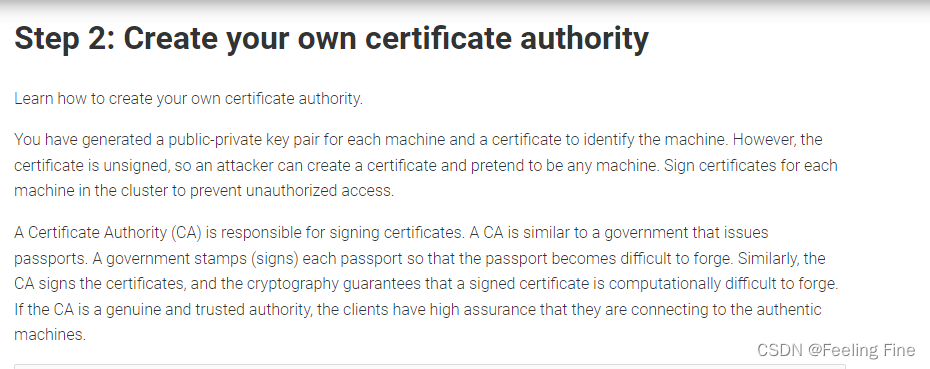

       创建CA证书

openssl req -new -x509 -keyout ca-key -out ca-cert -days 365

CN也要写hostname或直接用localhost

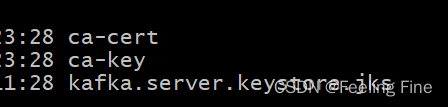

此时一共生成三个文件

注意！copy ca-cert 与 ca-key 文件到所有kafka broker机器上，（若是想在其他机器上连接也要把这两个文件拷贝过去，例如本地开发集成spring boot时），并放在固定位置

ca-cert 与 ca-key 代表一张CA

导入 ca-cert 到所有brokers的kafka.server.truststore.jks中，终端交互输入 yes

keytool -keystore kafka.server.truststore.jks -alias CARoot -importcert -file ca-cert

原文中多一部将kafka.server.keystore.jks密钥库的证书导出才签名

keytool -keystore kafka.server.keystore.jks -alias localhost -certreq -file cert-file

证书签名

openssl x509 -req -CA ca-cert -CAkey ca-key -in cert-file -out cert-signed -days 365 -CAcreateserial -passin pass:123456

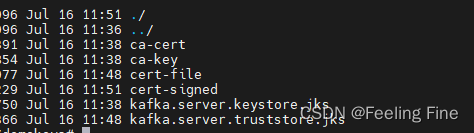

此时一共生成六个文件

向密钥库 kafka.server.keystore.jks 导入证书与数字签名

keytool -keystore kafka.server.keystore.jks -alias CARoot -importcert -file ca-cert
keytool -keystore kafka.server.keystore.jks -alias localhost -importcert -file cert-signed

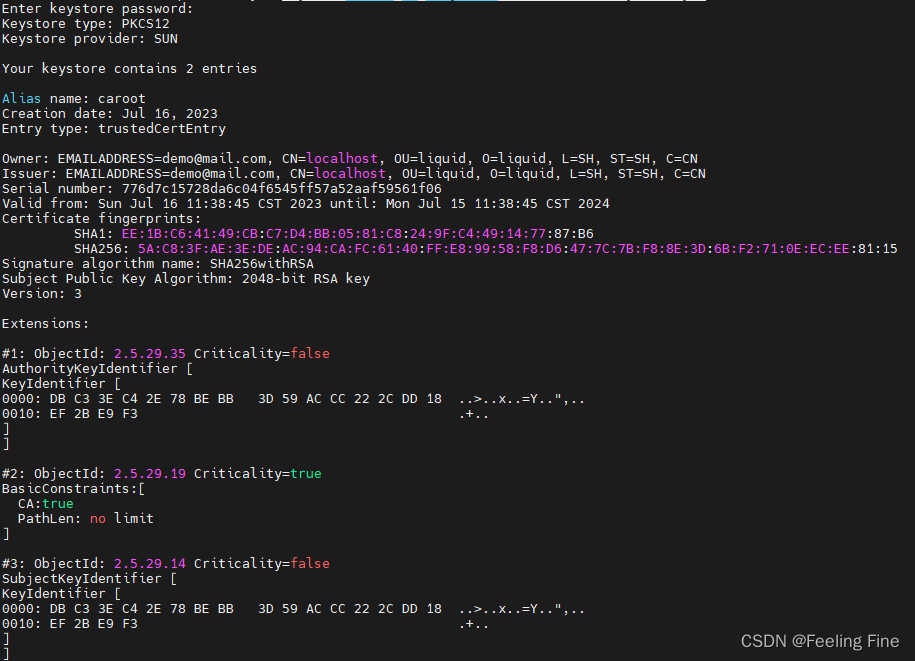

查看kafka.server.keystore.jks包含的内容

keytool --list -v -keystore  kafka.server.keystore.jks



 全部命令如下，思路就是全局生成一张CA (包含ca-cert ca-key)



• 每台机器生成
  • kafka.server.keystore.jks
• ca-cert导入到每一个 kafka.server.truststore.jks（ca-cert导完了就生成） 的CAroot中
• 每一个kafka.server.keystore.jks导出一个cert-file
• 用ca-cert ca-key 给 cert-file 签出一个 cert-signed，
• ca-cert cert-signed都导入kafka.server.keystore.jks

  keytool -keystore kafka.server.keystore.jks -alias localhost -keyalg RSA -validity {validity} -genkey
  openssl req -new -x509 -keyout ca-key -out ca-cert -days {validity}
  keytool -keystore kafka.client.truststore.jks -alias CARoot -importcert -file ca-cert
  keytool -keystore kafka.server.truststore.jks -alias CARoot -importcert -file ca-cert
  keytool -keystore kafka.server.keystore.jks -alias localhost -certreq -file cert-file
  openssl x509 -req -CA ca-cert -CAkey ca-key -in cert-file -out cert-signed -days {validity} -CAcreateserial -passin pass:{ca-password}
  keytool -keystore kafka.server.keystore.jks -alias CARoot -importcert -file ca-cert
  keytool -keystore kafka.server.keystore.jks -alias localhost -importcert -file cert-signed

  原文链接

  现在全部文件如下(忽略 auto-create-kafka-ssl-keys.sh 这个是自动生成证书的脚本github连接 与 备份压缩包demo.tar)



   编辑kafka服务配置文件 server.properties

  advertised.listeners要和listeners对应，

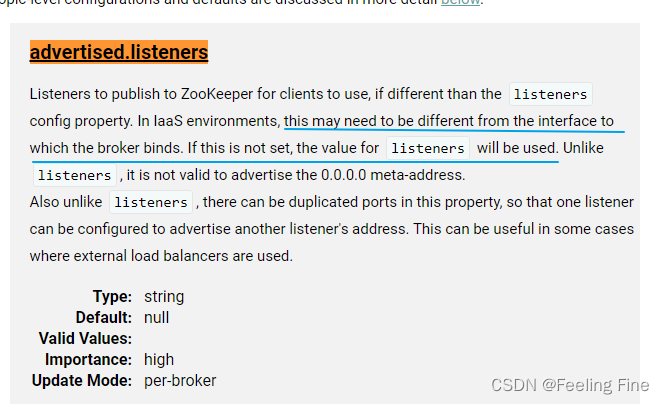

  advertised.listeners概述



   advertised.listeners不要绑定0.0.0.0端口，这里配置SSL为内部访问所以使用云服务器的hostname, brokers之间如何根据彼此的hostname来寻找呢？Linux可编辑/etc/hosts文件

  末尾加上 :添加dns映射 windows在C:\Windows\System32\drivers\etc目录下找hosts文件

  broker.id=1
  ############################# Socket Server Settings #############################
  listeners=SSL://:9093,SASL_SSL://:9094
  # 注意 这里SSL是做内部brokers通信用的，外部暴露方式为SASL_SSL
  advertised.listeners=SSL://Your-Host-name:9093,SASL_SSL://:9094
  log.retention.check.interval.ms=300000
  ############################# Zookeeper #############################
  zookeeper.connect=1.1.1.1:2182,2.2.2.2:2182,3.3.3.3:2182
  # Timeout in ms for connecting to zookeeper
  zookeeper.connection.timeout.ms=18000
  ############################# Kafka Security ###########################
  ssl.endpoint.identification.algorithm=
  security.inter.broker.protocol=SSL
  ssl.client.auth=required
  # ssl加密协议选择
  ssl.enabled.protocols=TLSv1.3,TLSv1.1,TLSv1
  # Broker security settings
  sasl.enabled.mechanisms=PLAIN
  #ssl.truststore.password=123456
  ssl.truststore.password=123456
  ssl.truststore.location=/opt/kafka/crkeys/kafka.server.truststore.jks
  ssl.keystore.location=/opt/kafka/crkeys/kafka.server.keystore.jks
  ssl.keystore.password=123456
  ssl.key.password=123456
  ############################# Group Coordinator Settings #############################
  group.initial.rebalance.delay.ms=0

  启动zookeeper集群

  编辑一个脚本分别启动每一个broker上的zookeeper

  kafka-zookeeper-quick-start.sh*

  #!/bin/bash
  # 让jaas文件被zookeeper加载到运行时环境
  # KAFKA_OPTS为固定用法
  export KAFKA_OPTS="-Djava.security.auth.login.config=/opt/kafka/kafka-server/config/zk_jaas.conf"
  nohup /opt/kafka/kafka-server/bin/zookeeper-server-start.sh /opt/kafka/kafka-server/config/zookeeper.properties > kafka-zookeeper-start.log 2>&1 &

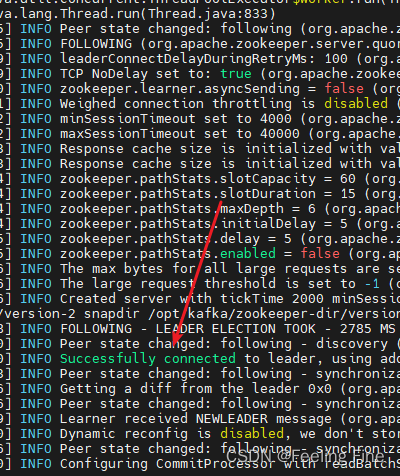

  zookeeper集群启动结束

  启动kafka集群

  编写一个脚本启动每一个broker 优先启动的broker会作为主节点

  kafka-server-quick-start.sh

  #!/bin/bash
  export KAFKA_HEAP_OPTS="-Xmx512m -Xms512m"
  export KAFKA_OPTS=-Djava.security.auth.login.config=/opt/kafka/kafka-server/config/kafka_server_jaas.conf
  nohup /opt/kafka/kafka-server/bin/kafka-server-start.sh /opt/kafka/kafka-server/config/server.properties > kafka-server-start.log 2>&1 &
  #/opt/kafka/kafka-server/bin/kafka-server-start.sh /opt/kafka/kafka-server/config/server.properties



   任意报错可以修改config目录下的log4j.properties 将所有logger设置成trace查看

   注意 设为trace之后 非kafka主节点会疯狂滚动一个controller就绪日志

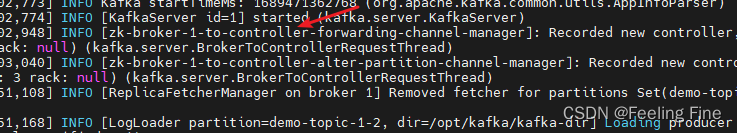

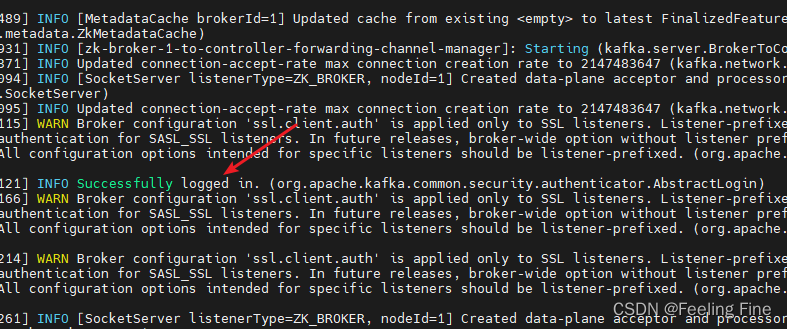

   以下为主节点



    什么是kafka controller

   全局只有一个broker节点的controller会生效，暂不深究

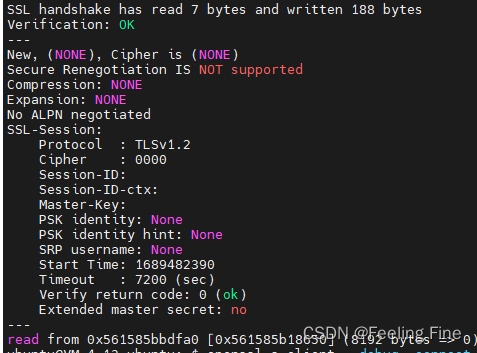

   ssl 生效测试

  本文Kafka配置为 TLSv1.3,TLSv1.1,TLSv1 可加入 TLSv1.2

  具体协议版本会与jdk版本有关

  openssl s_client --debug -connect : -tls1 次处 Verify return code: 0 代表最低版本tls协议生效

  openssl s_client --debug -connect : -tls1_1

  openssl s_client --debug -connect : -tls1_2

  openssl s_client --debug -connect : -tls1_3



  随便登上一台机器或者在开发本地在一个固定目录下创建公用配置文件

  client_security.properties

  ssl.endpoint.identification.algorithm=
  #security.protocol=SSL
  security.protocol=SASL_SSL
  ssl.truststore.location=/opt/kafka/crkeys/kafka.server.truststore.jks
  ssl.truststore.password=123456
  ssl.keystore.location=/opt/kafka/crkeys/kafka.server.keystore.jks
  ssl.keystore.password=123456
  sasl.mechanism=PLAIN
  sasl.jaas.config=org.apache.kafka.common.security.plain.PlainLoginModule required \
      username="client" \
      password="client-sec";


  编写一个脚本创建topic

  脚本内容

  ./bin/kafka-topics.sh --create --topic demo-topic-1 --command-config /opt/kafka/kafka-server/config/client_security.properties --partitions 3 --replication-factor 3 --bootstreap-server your-hostname-1:9094,your-hostname-2:9094,your-hostname-3:9094

  编写一个脚本测试producer和consumer

  脚本内容

  /opt/kafka/kafka-server/bin/kafka-console-producer.sh --bootstrap-server hostname-1:9094,hostname-2:9094,hostname-3:9094 --topic demo-topic-1 --producer.config /opt/kafka/kafka-server/config/client_security.properties



   启动consumer

   脚本内容

  #!/bin/bash
  /opt/kafka/kafka-server/bin/kafka-console-consumer.sh --bootstrap-server hostname-1:9094,hostname-2:9094,hostname-3:9094 --topic demo-topic-1 --consumer.config /opt/kafka/kafka-server/config/client_security.properties --from-beginning

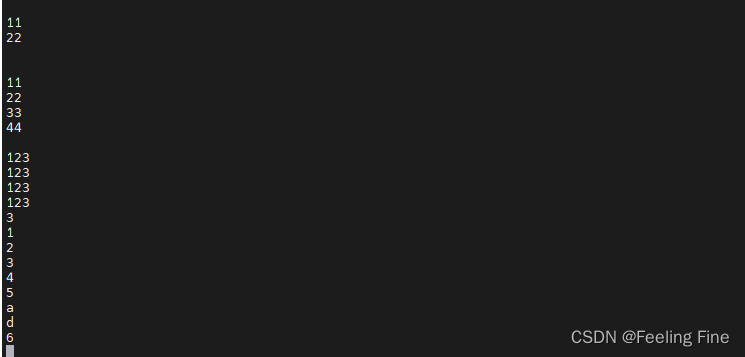

  这里consumer 添加了 --from-beginning 选项，会从头读取producer写入的数据



  spring-cloud-starter-bus-kafka 集成

  使用spring-cloud-dependencies-2021.0.8 版本 spring-boot-dependencies-2.7.13

  spring-cloud-starter-bus-kafka 包含两个依赖

  注意，本地生成keystore与truststore步骤与上面的生成步骤一致，需要把全局唯一的ca-cert ca-key拷贝到本地来生成keystore与truststore



        org.springframework.cloud
        spring-cloud-starter-stream-kafka
        3.2.4
        compile


        org.springframework.cloud
        spring-cloud-bus
        3.1.2
        compile



  application配置

  server.port=13001
  server.servlet.context-path=/liquid/configs-dev
  # Kafka
  spring.kafka.bootstrap-servers=1.1.1.1:9094,2.2.2.2:9094,3.3.3.3:9094
  spring.kafka.security.protocol=SASL_SSL
  spring.kafka.ssl.key-store-location=kafka.server.keystore.jks
  spring.kafka.ssl.key-store-password=123456
  spring.kafka.ssl.key-store-type=jks
  spring.kafka.ssl.trust-store-location=kafka.server.truststore.jks
  spring.kafka.ssl.trust-store-password=123456
  spring.kafka.ssl.trust-store-type=jks
  spring.kafka.retry.topic.attempts=3
  # Kafka stream
  spring.cloud.stream.kafka.binder.configuration.sasl.mechanism=PLAIN
  spring.cloud.stream.kafka.binder.configuration.ssl.endpoint.identification.algorithm=
  spring.cloud.stream.kafka.binder.configuration.ssl.keystore.location=classpath:kafka.server.keystore.jks
  spring.cloud.stream.kafka.binder.configuration.ssl.keystore.password=123456
  spring.cloud.stream.kafka.binder.configuration.ssl.truststore.location=classpath:kafka.server.keystore.jks
  spring.cloud.stream.kafka.binder.configuration.ssl.ssl.truststore.password=123456
  spring.cloud.stream.kafka.binder.brokers=1.1.1.1:9094,2.2.2.2:9094,3.3.3.3:9094
  spring.kafka.streams.replication-factor=1
  spring.cloud.stream.kafka.binder.replication-factor=1
  spring.cloud.stream.kafka.binder.auto-create-topics=false
  # spring cloud config
  spring.cloud.config.server.git.uri=https://github.com/spring-cloud-samples/config-repo


  创建一个Java Base Configuration

  package com.liquid.config.center.configs;
  import lombok.extern.slf4j.Slf4j;
  import org.apache.kafka.clients.CommonClientConfigs;
  import org.apache.kafka.clients.admin.AdminClientConfig;
  import org.apache.kafka.clients.consumer.ConsumerConfig;
  import org.apache.kafka.clients.producer.ProducerConfig;
  import org.apache.kafka.common.config.SaslConfigs;
  import org.apache.kafka.common.security.plain.PlainLoginModule;
  import org.springframework.beans.factory.annotation.Value;
  import org.springframework.cloud.stream.binder.kafka.properties.JaasLoginModuleConfiguration;
  import org.springframework.cloud.stream.binder.kafka.properties.KafkaBinderConfigurationProperties;
  import org.springframework.context.annotation.Bean;
  import org.springframework.context.annotation.Configuration;
  import org.springframework.context.annotation.Primary;
  import org.springframework.kafka.core.*;
  import org.springframework.kafka.security.jaas.KafkaJaasLoginModuleInitializer;
  import org.springframework.kafka.support.serializer.ErrorHandlingDeserializer;
  import org.springframework.kafka.support.serializer.JsonDeserializer;
  import org.springframework.kafka.support.serializer.JsonSerializer;
  import java.io.IOException;
  import java.util.HashMap;
  import java.util.Map;
  @Slf4j
  @Configuration
  public class LiquidKafkaConfiguration {
      @Value("${spring.kafka.bootstrap-servers}")
      public String bootstrapServers;
      @Bean
      public KafkaAdmin kafkaAdmin() {
          Map configs = new HashMap<>();
          configs.put(AdminClientConfig.BOOTSTRAP_SERVERS_CONFIG, bootstrapServers);
          configs.put("security.protocol", "SASL_SSL");
          configs.put("sasl.mechanism", "PLAIN");
          configs.put("sasl.jaas.config", "org.apache.kafka.common.security.plain.PlainLoginModule required " +
                  "username=client" +
                  "password=client-sec;");
          log.info(">>> Loading Kafka Admin With Jaas String end");
          return new KafkaAdmin(configs);
      }
      @Bean
      public ProducerFactory producerFactory() {
          Map props = new HashMap<>();
          props.put(ProducerConfig.BOOTSTRAP_SERVERS_CONFIG, bootstrapServers);
          props.put(ProducerConfig.KEY_SERIALIZER_CLASS_CONFIG, JsonSerializer.class);
          props.put(ProducerConfig.VALUE_SERIALIZER_CLASS_CONFIG, JsonSerializer.class);
          props.put(CommonClientConfigs.SECURITY_PROTOCOL_CONFIG, "SASL_SSL");
          props.put(SaslConfigs.SASL_MECHANISM, "PLAIN");
          props.put(SaslConfigs.SASL_JAAS_CONFIG, String.format(
                  "%s required username=\"%s\" " + "password=\"%s\";", PlainLoginModule.class.getName(), "client", "client-sec"
          ));
          return new DefaultKafkaProducerFactory<>(props);
      }
      @Bean
      public ConsumerFactory consumerFactory() {
          Map props = new HashMap<>();
          props.put(ConsumerConfig.BOOTSTRAP_SERVERS_CONFIG, bootstrapServers);
          props.put(ConsumerConfig.KEY_DESERIALIZER_CLASS_CONFIG, ErrorHandlingDeserializer.class);
          props.put(ConsumerConfig.VALUE_DESERIALIZER_CLASS_CONFIG, ErrorHandlingDeserializer.class);
          props.put(ErrorHandlingDeserializer.KEY_DESERIALIZER_CLASS, JsonDeserializer.class);
          props.put(ErrorHandlingDeserializer.VALUE_DESERIALIZER_CLASS, JsonDeserializer.class);
          props.put(JsonDeserializer.TRUSTED_PACKAGES, "*");
          props.put(CommonClientConfigs.SECURITY_PROTOCOL_CONFIG, "SASL_SSL");
          props.put(SaslConfigs.SASL_MECHANISM, "PLAIN");
          props.put(SaslConfigs.SASL_JAAS_CONFIG, String.format(
                  "%s required username=\"%s\" " + "password=\"%s\";", PlainLoginModule.class.getName(), "client", "client-sec"
          ));
          return new DefaultKafkaConsumerFactory<>(props);
      }
      @Bean("JaasLoginModuleConfiguration")
      public JaasLoginModuleConfiguration creatStreamJaasLoginModule() {
          Map configs = new HashMap<>();
          configs.put("security.protocol", "SASL_SSL");
          configs.put("sasl.mechanism", "PLAIN");
          configs.put("sasl.jaas.config", "org.apache.kafka.common.security.plain.PlainLoginModule required " +
                  "username=client" +
                  "password=client-sec;");
          log.info(">>> Loading Kafka Admin with jaas string end");
          JaasLoginModuleConfiguration jaasLoginModuleConfiguration = new JaasLoginModuleConfiguration();
          jaasLoginModuleConfiguration.setOptions(configs);
          return jaasLoginModuleConfiguration;
      }
      @Bean
      @Primary
      public KafkaBinderConfigurationProperties kafkaBinderConfigurationProperties(KafkaBinderConfigurationProperties properties) {
          String saslJaasConfigString = String.format("%s required username=\"%s\" " + "password=\"%s\";", PlainLoginModule.class.getName(), "client", "client-sec");
          Map configMap = properties.getConfiguration();
          configMap.put(SaslConfigs.SASL_JAAS_CONFIG, saslJaasConfigString);
          return properties;
      }
  }

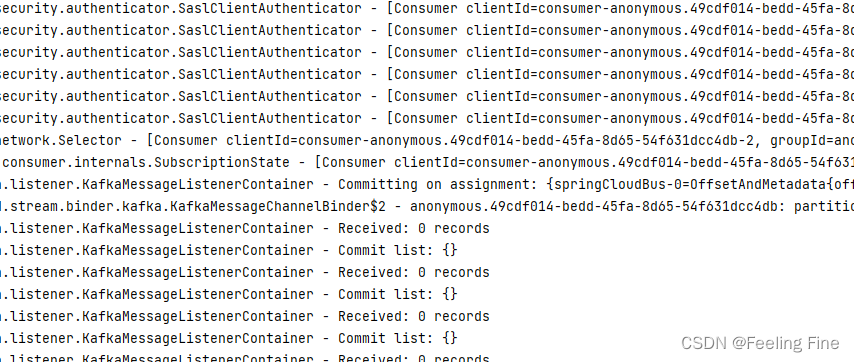

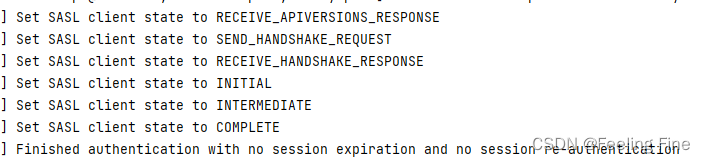

  最终启动后 日志



   SSL handshake completed successfully with peerHost





   至此 kafka内部ssl 客户端SASL_SSL认证成功
