基于Flink CDC实时同步数据（MySQL到MySQL）
作者：mmseoamin日期：2023-12-18

一、环境

  • jdk8
  • Flink 1.16.1（部署在远程服务器：192.168.137.99）
  • Flink CDC 2.3.0
  • MySQL 8.0（安装在本地：192.168.3.31）

    （安装部署过程略）

    二、准备

    准备三个数据库：flink_source、flink_sink、flink_sink_second。

    将flink_source.source_test表实时同步到flink_sink和flink_sink_second的sink_test表。

    （建库建表过程略）

    三、Flink SQL Client上开发SQL作业

    开发过程可以参考Flink CDC官网的例子（譬如：基于 Flink CDC 构建 MySQL 和 Postgres 的 Streaming ETL）。

    这里介绍的是MySQL到MySQL的同步，稍有不同，需要下载JDBC SQL连接器的依赖包（下载地址，使用方法），放到目录 {flink-1.16.1}/lib/ 下，用于使用JDBC SQL连接器连接MySQL的sink库。

    ✳注意下面两个jar的区别，是需要将flink-sql-connector-mysql-cdc-2.3.0.jar放到{flink-1.16.1}/lib/ 下。由于网络限制，本人最初是通过maven下载的flink-connector-mysql-cdc-2.3.0.jar，导致了各种找不到类的异常。

    flink-sql-connector-mysql-cdc-2.3.0.jar（包含有依赖的jar）

    flink-connector-mysql-cdc-2.3.0.jar（不包含依赖jar）

    flink-sql-connector-mysql-cdc-2.3.0.jar：


    com.ververica
    flink-sql-connector-mysql-cdc
    2.3.0

    flink-connector-mysql-cdc-2.3.0.jar：


    com.ververica
    flink-connector-mysql-cdc
    2.3.0

    使用下面的命令启动 Flink SQL CLI

    ./bin/sql-client.sh

    然后使用下面的建表语句创建Flink表，以及将flink_source.source_test表实时同步到flink_sink、flink_sink_second的sink_test表。

    Flink SQL> SET execution.checkpointing.interval = 3s;
[INFO] Session property has been set.
Flink SQL> CREATE TABLE source_test (
>   user_id STRING,
>   user_name STRING,
>   PRIMARY KEY (user_id) NOT ENFORCED
> ) WITH (
>    'connector' = 'mysql-cdc',
>    'hostname' = '192.168.3.31',
>    'port' = '3306',
>    'username' = 'root',
>    'password' = '******',
>    'database-name' = 'flink_source',
>    'table-name' = 'source_test'
> );
[INFO] Execute statement succeed.
Flink SQL> CREATE TABLE sink_test (
>   user_id STRING,
>   user_name STRING,
>   PRIMARY KEY (user_id) NOT ENFORCED
> ) WITH (
>    'connector' = 'jdbc',
>    'url' = 'jdbc:mysql://192.168.3.31:3306/flink_sink',
>    'driver' = 'com.mysql.cj.jdbc.Driver',
>    'username' = 'root',
>    'password' = '******',
>    'table-name' = 'sink_test'
> );
[INFO] Execute statement succeed.
Flink SQL> CREATE TABLE sink_test_second (
>   user_id STRING,
>   user_name STRING,
>   PRIMARY KEY (user_id) NOT ENFORCED
> ) WITH (
>    'connector' = 'jdbc',
>    'url' = 'jdbc:mysql://192.168.3.31:3306/flink_sink_second',
>    'driver' = 'com.mysql.cj.jdbc.Driver',
>    'username' = 'root',
>    'password' = '******',
>    'table-name' = 'sink_test'
> );
[INFO] Execute statement succeed.
Flink SQL> insert into sink_test select * from source_test;
[INFO] Submitting SQL update statement to the cluster...
[INFO] SQL update statement has been successfully submitted to the cluster:
Job ID: 0c49758cc251699f0b4acd6c9f735e6e
Flink SQL> insert into sink_test_second select * from source_test;
[INFO] Submitting SQL update statement to the cluster...
[INFO] SQL update statement has been successfully submitted to the cluster:
Job ID: ecea685a715d7d40ee1a94aac3236c18
Flink SQL>

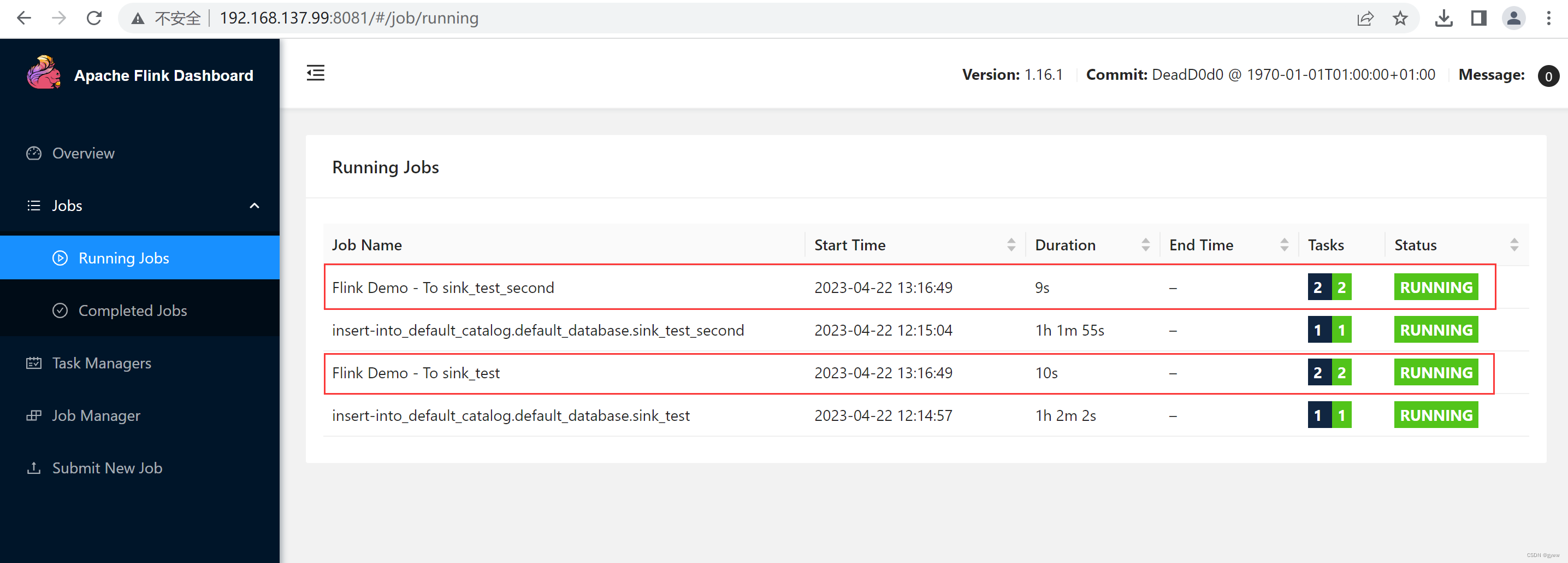

    访问Flink web：http://192.168.137.99:8081/#/job/running，可以看到已经新建了两个作业。

    基于Flink CDC实时同步数据（MySQL到MySQL）,在这里插入图片描述,第1张

    四、使用本机执行环境开发SQL作业

    直接贴代码。

    pom.xml：



    4.0.0
    org.example
    FlinkDemo
    1.0-SNAPSHOT
    jar

        8
        8
        UTF-8
        1.16.1
        2.3.0



            org.apache.flink
            flink-java
            ${flink.version}


            org.apache.flink
            flink-clients
            ${flink.version}


            org.apache.flink
            flink-streaming-java
            ${flink.version}


            org.apache.flink
            flink-table-api-java-bridge
            ${flink.version}


            org.apache.flink
            flink-table-planner-loader
            ${flink.version}


            org.apache.flink
            flink-table-runtime
            ${flink.version}


            org.apache.flink
            flink-connector-base
            ${flink.version}


            org.apache.flink
            flink-connector-jdbc
            ${flink.version}



            com.ververica
            flink-sql-connector-mysql-cdc
            ${flink-cdc.version}

    FlinkDemo.java：

    package org.example;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.table.api.EnvironmentSettings;
import org.apache.flink.table.api.bridge.java.StreamTableEnvironment;
public class FlinkDemo {
    public static void main(String[] args) throws Exception {
        StreamExecutionEnvironment env = null;
        // 本机执行环境
        env = StreamExecutionEnvironment.getExecutionEnvironment();
        // 远程执行环境
//        env = StreamExecutionEnvironment.createRemoteEnvironment("192.168.137.99", 8081);
        env.enableCheckpointing(3000l).setParallelism(2);
        EnvironmentSettings settings = EnvironmentSettings
                .newInstance()
                .inStreamingMode()
                .build();
        StreamTableEnvironment tableEnv = StreamTableEnvironment.create(env, settings);
        // CREATE TABLE source_test
        tableEnv.executeSql(sourceDDL());
        // CREATE TABLE sink_test
        tableEnv.executeSql(sinkDDL());
        // CREATE TABLE sink_test_second
        tableEnv.executeSql(sinkDDLOfSecondDb());
        // 将source_test同步到sink_test和sink_test_second
        tableEnv.getConfig().set("pipeline.name", "Flink Demo - To sink_test");         // 设置job名称
        tableEnv.executeSql("insert into sink_test select * from source_test;");
        tableEnv.getConfig().set("pipeline.name", "Flink Demo - To sink_test_second");  // 设置job名称
        tableEnv.executeSql("insert into sink_test_second select * from source_test;");
    }
    public static String sourceDDL() {
        String sourceDDL = "CREATE TABLE source_test (\n" +
                "  user_id STRING,\n" +
                "  user_name STRING,\n" +
                "  PRIMARY KEY (user_id) NOT ENFORCED\n" +
                ") WITH (\n" +
                "   'connector' = 'mysql-cdc',\n" +
                "   'hostname' = '192.168.3.31',\n" +
                "   'port' = '3306',\n" +
                "   'username' = 'root',\n" +
                "   'password' = '******',\n" +
                "   'database-name' = 'flink_source',\n" +
                "   'table-name' = 'source_test'\n" +
                ");";
        return sourceDDL;
    }
    public static String sinkDDL() {
        String sinkDDL = "CREATE TABLE sink_test (\n" +
                "  user_id STRING,\n" +
                "  user_name STRING,\n" +
                "  PRIMARY KEY (user_id) NOT ENFORCED\n" +
                ") WITH (\n" +
                "   'connector' = 'jdbc',\n" +
                "   'url' = 'jdbc:mysql://192.168.3.31:3306/flink_sink',\n" +
                "   'driver' = 'com.mysql.cj.jdbc.Driver',\n" +
                "   'username' = 'root',\n" +
                "   'password' = '******',\n" +
                "   'table-name' = 'sink_test'\n" +
                ");";
        return sinkDDL;
    }
    public static String sinkDDLOfSecondDb() {
        String sinkDDL = "CREATE TABLE sink_test_second (\n" +
                "  user_id STRING,\n" +
                "  user_name STRING,\n" +
                "  PRIMARY KEY (user_id) NOT ENFORCED\n" +
                ") WITH (\n" +
                "   'connector' = 'jdbc',\n" +
                "   'url' = 'jdbc:mysql://192.168.3.31:3306/flink_sink_second',\n" +
                "   'driver' = 'com.mysql.cj.jdbc.Driver',\n" +
                "   'username' = 'root',\n" +
                "   'password' = '******',\n" +
                "   'table-name' = 'sink_test'\n" +
                ");";
        return sinkDDL;
    }
}

    五、远程执行环境开发SQL作业

    提交SQL作业到远程Flink集群上执行，需要使用下面的方法创建执行环境：

    StreamExecutionEnvironment.createRemoteEnvironment("192.168.137.99", 8081);

    而本机执行是：

    StreamExecutionEnvironment.getExecutionEnvironment();

    上面的FlinkDemo.java，修改执行环境后，运行代码提交作业：

    基于Flink CDC实时同步数据（MySQL到MySQL）,在这里插入图片描述,第2张

    另外在远程执行的时候，必须使用flink-sql-connector-mysql-cdc，不能使用flink-connector-mysql-cdc。否则会报错：Caused by: java.io.StreamCorruptedException: unexpected block data

    "C:\Program Files\Java\jdk1.8.0_351\bin\java.exe" "-javaagent:C:\Program Files\JetBrains\IntelliJ IDEA 2022.3.3\lib\idea_rt.jar=53061:C:\Program Files\JetBrains\IntelliJ IDEA 2022.3.3\bin" -Dfile.encoding=UTF-8 -classpath "C:\Program Files\Java\jdk1.8.0_351\jre\lib\charsets.jar;C:\Program Files\Java\jdk1.8.0_351\jre\lib\deploy.jar;C:\Program Files\Java\jdk1.8.0_351\jre\lib\ext\access-bridge-64.jar;C:\Program Files\Java\jdk1.8.0_351\jre\lib\ext\cldrdata.jar;C:\Program Files\Java\jdk1.8.0_351\jre\lib\ext\dnsns.jar;C:\Program Files\Java\jdk1.8.0_351\jre\lib\ext\jaccess.jar;C:\Program Files\Java\jdk1.8.0_351\jre\lib\ext\jfxrt.jar;C:\Program Files\Java\jdk1.8.0_351\jre\lib\ext\localedata.jar;C:\Program Files\Java\jdk1.8.0_351\jre\lib\ext\nashorn.jar;C:\Program Files\Java\jdk1.8.0_351\jre\lib\ext\sunec.jar;C:\Program Files\Java\jdk1.8.0_351\jre\lib\ext\sunjce_provider.jar;C:\Program Files\Java\jdk1.8.0_351\jre\lib\ext\sunmscapi.jar;C:\Program Files\Java\jdk1.8.0_351\jre\lib\ext\sunpkcs11.jar;C:\Program Files\Java\jdk1.8.0_351\jre\lib\ext\zipfs.jar;C:\Program Files\Java\jdk1.8.0_351\jre\lib\javaws.jar;C:\Program Files\Java\jdk1.8.0_351\jre\lib\jce.jar;C:\Program Files\Java\jdk1.8.0_351\jre\lib\jfr.jar;C:\Program Files\Java\jdk1.8.0_351\jre\lib\jfxswt.jar;C:\Program Files\Java\jdk1.8.0_351\jre\lib\jsse.jar;C:\Program Files\Java\jdk1.8.0_351\jre\lib\management-agent.jar;C:\Program Files\Java\jdk1.8.0_351\jre\lib\plugin.jar;C:\Program Files\Java\jdk1.8.0_351\jre\lib\resources.jar;C:\Program Files\Java\jdk1.8.0_351\jre\lib\rt.jar;E:\java\code\FlinkDemo\target\classes;E:\java\.m2\repository\org\apache\flink\flink-java\1.16.1\flink-java-1.16.1.jar;E:\java\.m2\repository\org\apache\flink\flink-core\1.16.1\flink-core-1.16.1.jar;E:\java\.m2\repository\org\apache\flink\flink-annotations\1.16.1\flink-annotations-1.16.1.jar;E:\java\.m2\repository\org\apache\flink\flink-metrics-core\1.16.1\flink-metrics-core-1.16.1.jar;E:\java\.m2\repository\org\apache\flink\flink-shaded-asm-9\9.2-15.0\flink-shaded-asm-9-9.2-15.0.jar;E:\java\.m2\repository\org\apache\flink\flink-shaded-jackson\2.12.4-15.0\flink-shaded-jackson-2.12.4-15.0.jar;E:\java\.m2\repository\com\esotericsoftware\kryo\kryo\2.24.0\kryo-2.24.0.jar;E:\java\.m2\repository\com\esotericsoftware\minlog\minlog\1.2\minlog-1.2.jar;E:\java\.m2\repository\org\objenesis\objenesis\2.1\objenesis-2.1.jar;E:\java\.m2\repository\commons-collections\commons-collections\3.2.2\commons-collections-3.2.2.jar;E:\java\.m2\repository\org\apache\commons\commons-compress\1.21\commons-compress-1.21.jar;E:\java\.m2\repository\org\apache\commons\commons-lang3\3.3.2\commons-lang3-3.3.2.jar;E:\java\.m2\repository\org\apache\commons\commons-math3\3.6.1\commons-math3-3.6.1.jar;E:\java\.m2\repository\com\twitter\chill-java\0.7.6\chill-java-0.7.6.jar;E:\java\.m2\repository\org\slf4j\slf4j-api\1.7.32\slf4j-api-1.7.32.jar;E:\java\.m2\repository\com\google\code\findbugs\jsr305\1.3.9\jsr305-1.3.9.jar;E:\java\.m2\repository\org\apache\flink\flink-shaded-force-shading\15.0\flink-shaded-force-shading-15.0.jar;E:\java\.m2\repository\org\apache\flink\flink-clients\1.16.1\flink-clients-1.16.1.jar;E:\java\.m2\repository\org\apache\flink\flink-runtime\1.16.1\flink-runtime-1.16.1.jar;E:\java\.m2\repository\org\apache\flink\flink-rpc-core\1.16.1\flink-rpc-core-1.16.1.jar;E:\java\.m2\repository\org\apache\flink\flink-rpc-akka-loader\1.16.1\flink-rpc-akka-loader-1.16.1.jar;E:\java\.m2\repository\org\apache\flink\flink-queryable-state-client-java\1.16.1\flink-queryable-state-client-java-1.16.1.jar;E:\java\.m2\repository\org\apache\flink\flink-hadoop-fs\1.16.1\flink-hadoop-fs-1.16.1.jar;E:\java\.m2\repository\commons-io\commons-io\2.11.0\commons-io-2.11.0.jar;E:\java\.m2\repository\org\apache\flink\flink-shaded-netty\4.1.70.Final-15.0\flink-shaded-netty-4.1.70.Final-15.0.jar;E:\java\.m2\repository\org\apache\flink\flink-shaded-zookeeper-3\3.5.9-15.0\flink-shaded-zookeeper-3-3.5.9-15.0.jar;E:\java\.m2\repository\org\javassist\javassist\3.24.0-GA\javassist-3.24.0-GA.jar;E:\java\.m2\repository\org\xerial\snappy\snappy-java\1.1.8.3\snappy-java-1.1.8.3.jar;E:\java\.m2\repository\org\lz4\lz4-java\1.8.0\lz4-java-1.8.0.jar;E:\java\.m2\repository\org\apache\flink\flink-optimizer\1.16.1\flink-optimizer-1.16.1.jar;E:\java\.m2\repository\commons-cli\commons-cli\1.5.0\commons-cli-1.5.0.jar;E:\java\.m2\repository\org\apache\flink\flink-streaming-java\1.16.1\flink-streaming-java-1.16.1.jar;E:\java\.m2\repository\org\apache\flink\flink-file-sink-common\1.16.1\flink-file-sink-common-1.16.1.jar;E:\java\.m2\repository\org\apache\flink\flink-shaded-guava\30.1.1-jre-15.0\flink-shaded-guava-30.1.1-jre-15.0.jar;E:\java\.m2\repository\org\apache\flink\flink-table-api-java-bridge\1.16.1\flink-table-api-java-bridge-1.16.1.jar;E:\java\.m2\repository\org\apache\flink\flink-table-api-java\1.16.1\flink-table-api-java-1.16.1.jar;E:\java\.m2\repository\org\apache\flink\flink-table-api-bridge-base\1.16.1\flink-table-api-bridge-base-1.16.1.jar;E:\java\.m2\repository\org\apache\flink\flink-table-planner-loader\1.16.1\flink-table-planner-loader-1.16.1.jar;E:\java\.m2\repository\org\apache\flink\flink-table-runtime\1.16.1\flink-table-runtime-1.16.1.jar;E:\java\.m2\repository\org\apache\flink\flink-table-common\1.16.1\flink-table-common-1.16.1.jar;E:\java\.m2\repository\com\ibm\icu\icu4j\67.1\icu4j-67.1.jar;E:\java\.m2\repository\org\apache\flink\flink-cep\1.16.1\flink-cep-1.16.1.jar;E:\java\.m2\repository\org\apache\flink\flink-connector-base\1.16.1\flink-connector-base-1.16.1.jar;E:\java\.m2\repository\org\apache\flink\flink-connector-jdbc\1.16.1\flink-connector-jdbc-1.16.1.jar;E:\java\.m2\repository\com\ververica\flink-connector-mysql-cdc\2.3.0\flink-connector-mysql-cdc-2.3.0.jar;E:\java\.m2\repository\com\ververica\flink-connector-debezium\2.3.0\flink-connector-debezium-2.3.0.jar;E:\java\.m2\repository\io\debezium\debezium-api\1.6.4.Final\debezium-api-1.6.4.Final.jar;E:\java\.m2\repository\io\debezium\debezium-embedded\1.6.4.Final\debezium-embedded-1.6.4.Final.jar;E:\java\.m2\repository\org\apache\kafka\connect-api\2.7.1\connect-api-2.7.1.jar;E:\java\.m2\repository\org\apache\kafka\kafka-clients\2.7.1\kafka-clients-2.7.1.jar;E:\java\.m2\repository\com\github\luben\zstd-jni\1.4.5-6\zstd-jni-1.4.5-6.jar;E:\java\.m2\repository\javax\ws\rs\javax.ws.rs-api\2.1.1\javax.ws.rs-api-2.1.1.jar;E:\java\.m2\repository\org\apache\kafka\connect-runtime\2.7.1\connect-runtime-2.7.1.jar;E:\java\.m2\repository\org\apache\kafka\kafka-tools\2.7.1\kafka-tools-2.7.1.jar;E:\java\.m2\repository\net\sourceforge\argparse4j\argparse4j\0.7.0\argparse4j-0.7.0.jar;E:\java\.m2\repository\org\apache\kafka\connect-transforms\2.7.1\connect-transforms-2.7.1.jar;E:\java\.m2\repository\com\fasterxml\jackson\jaxrs\jackson-jaxrs-json-provider\2.10.5\jackson-jaxrs-json-provider-2.10.5.jar;E:\java\.m2\repository\com\fasterxml\jackson\jaxrs\jackson-jaxrs-base\2.10.5\jackson-jaxrs-base-2.10.5.jar;E:\java\.m2\repository\com\fasterxml\jackson\module\jackson-module-jaxb-annotations\2.10.5\jackson-module-jaxb-annotations-2.10.5.jar;E:\java\.m2\repository\jakarta\xml\bind\jakarta.xml.bind-api\2.3.2\jakarta.xml.bind-api-2.3.2.jar;E:\java\.m2\repository\jakarta\activation\jakarta.activation-api\1.2.1\jakarta.activation-api-1.2.1.jar;E:\java\.m2\repository\org\glassfish\jersey\containers\jersey-container-servlet\2.31\jersey-container-servlet-2.31.jar;E:\java\.m2\repository\org\glassfish\jersey\containers\jersey-container-servlet-core\2.31\jersey-container-servlet-core-2.31.jar;E:\java\.m2\repository\org\glassfish\hk2\external\jakarta.inject\2.6.1\jakarta.inject-2.6.1.jar;E:\java\.m2\repository\jakarta\ws\rs\jakarta.ws.rs-api\2.1.6\jakarta.ws.rs-api-2.1.6.jar;E:\java\.m2\repository\org\glassfish\jersey\inject\jersey-hk2\2.31\jersey-hk2-2.31.jar;E:\java\.m2\repository\org\glassfish\hk2\hk2-locator\2.6.1\hk2-locator-2.6.1.jar;E:\java\.m2\repository\org\glassfish\hk2\external\aopalliance-repackaged\2.6.1\aopalliance-repackaged-2.6.1.jar;E:\java\.m2\repository\org\glassfish\hk2\hk2-api\2.6.1\hk2-api-2.6.1.jar;E:\java\.m2\repository\org\glassfish\hk2\hk2-utils\2.6.1\hk2-utils-2.6.1.jar;E:\java\.m2\repository\javax\xml\bind\jaxb-api\2.3.0\jaxb-api-2.3.0.jar;E:\java\.m2\repository\javax\activation\activation\1.1.1\activation-1.1.1.jar;E:\java\.m2\repository\org\eclipse\jetty\jetty-server\9.4.38.v20210224\jetty-server-9.4.38.v20210224.jar;E:\java\.m2\repository\javax\servlet\javax.servlet-api\3.1.0\javax.servlet-api-3.1.0.jar;E:\java\.m2\repository\org\eclipse\jetty\jetty-http\9.4.38.v20210224\jetty-http-9.4.38.v20210224.jar;E:\java\.m2\repository\org\eclipse\jetty\jetty-io\9.4.38.v20210224\jetty-io-9.4.38.v20210224.jar;E:\java\.m2\repository\org\eclipse\jetty\jetty-servlet\9.4.38.v20210224\jetty-servlet-9.4.38.v20210224.jar;E:\java\.m2\repository\org\eclipse\jetty\jetty-security\9.4.38.v20210224\jetty-security-9.4.38.v20210224.jar;E:\java\.m2\repository\org\eclipse\jetty\jetty-util-ajax\9.4.38.v20210224\jetty-util-ajax-9.4.38.v20210224.jar;E:\java\.m2\repository\org\eclipse\jetty\jetty-servlets\9.4.38.v20210224\jetty-servlets-9.4.38.v20210224.jar;E:\java\.m2\repository\org\eclipse\jetty\jetty-continuation\9.4.38.v20210224\jetty-continuation-9.4.38.v20210224.jar;E:\java\.m2\repository\org\eclipse\jetty\jetty-util\9.4.38.v20210224\jetty-util-9.4.38.v20210224.jar;E:\java\.m2\repository\org\eclipse\jetty\jetty-client\9.4.38.v20210224\jetty-client-9.4.38.v20210224.jar;E:\java\.m2\repository\org\reflections\reflections\0.9.12\reflections-0.9.12.jar;E:\java\.m2\repository\org\apache\maven\maven-artifact\3.6.3\maven-artifact-3.6.3.jar;E:\java\.m2\repository\org\codehaus\plexus\plexus-utils\3.2.1\plexus-utils-3.2.1.jar;E:\java\.m2\repository\org\apache\kafka\connect-json\2.7.1\connect-json-2.7.1.jar;E:\java\.m2\repository\com\fasterxml\jackson\datatype\jackson-datatype-jdk8\2.10.5\jackson-datatype-jdk8-2.10.5.jar;E:\java\.m2\repository\org\apache\kafka\connect-file\2.7.1\connect-file-2.7.1.jar;E:\java\.m2\repository\io\debezium\debezium-connector-mysql\1.6.4.Final\debezium-connector-mysql-1.6.4.Final.jar;E:\java\.m2\repository\io\debezium\debezium-core\1.6.4.Final\debezium-core-1.6.4.Final.jar;E:\java\.m2\repository\com\fasterxml\jackson\core\jackson-core\2.10.5\jackson-core-2.10.5.jar;E:\java\.m2\repository\com\fasterxml\jackson\core\jackson-databind\2.10.5.1\jackson-databind-2.10.5.1.jar;E:\java\.m2\repository\com\fasterxml\jackson\core\jackson-annotations\2.10.5\jackson-annotations-2.10.5.jar;E:\java\.m2\repository\com\fasterxml\jackson\datatype\jackson-datatype-jsr310\2.10.5\jackson-datatype-jsr310-2.10.5.jar;E:\java\.m2\repository\com\google\guava\guava\30.0-jre\guava-30.0-jre.jar;E:\java\.m2\repository\com\google\guava\failureaccess\1.0.1\failureaccess-1.0.1.jar;E:\java\.m2\repository\com\google\guava\listenablefuture\9999.0-empty-to-avoid-conflict-with-guava\listenablefuture-9999.0-empty-to-avoid-conflict-with-guava.jar;E:\java\.m2\repository\io\debezium\debezium-ddl-parser\1.6.4.Final\debezium-ddl-parser-1.6.4.Final.jar;E:\java\.m2\repository\org\antlr\antlr4-runtime\4.8\antlr4-runtime-4.8.jar;E:\java\.m2\repository\com\zendesk\mysql-binlog-connector-java\0.25.3\mysql-binlog-connector-java-0.25.3.jar;E:\java\.m2\repository\mysql\mysql-connector-java\8.0.27\mysql-connector-java-8.0.27.jar;E:\java\.m2\repository\com\esri\geometry\esri-geometry-api\2.2.0\esri-geometry-api-2.2.0.jar;E:\java\.m2\repository\com\zaxxer\HikariCP\4.0.3\HikariCP-4.0.3.jar;E:\java\.m2\repository\org\awaitility\awaitility\4.0.1\awaitility-4.0.1.jar;E:\java\.m2\repository\org\hamcrest\hamcrest\2.1\hamcrest-2.1.jar" org.example.FlinkDemo
SLF4J: Failed to load class "org.slf4j.impl.StaticLoggerBinder".
SLF4J: Defaulting to no-operation (NOP) logger implementation
SLF4J: See http://www.slf4j.org/codes.html#StaticLoggerBinder for further details.
Exception in thread "main" org.apache.flink.table.api.TableException: Failed to execute sql
	at org.apache.flink.table.api.internal.TableEnvironmentImpl.executeInternal(TableEnvironmentImpl.java:867)
	at org.apache.flink.table.api.internal.TableEnvironmentImpl.executeInternal(TableEnvironmentImpl.java:827)
	at org.apache.flink.table.api.internal.TableEnvironmentImpl.executeInternal(TableEnvironmentImpl.java:918)
	at org.apache.flink.table.api.internal.TableEnvironmentImpl.executeSql(TableEnvironmentImpl.java:730)
	at org.example.FlinkDemo.main(FlinkDemo.java:29)
Caused by: org.apache.flink.util.FlinkException: Failed to execute job 'Flink Demo - To sink_test'.
	at org.apache.flink.streaming.api.environment.StreamExecutionEnvironment.executeAsync(StreamExecutionEnvironment.java:2203)
	at org.apache.flink.table.planner.delegation.DefaultExecutor.executeAsync(DefaultExecutor.java:95)
	at org.apache.flink.table.api.internal.TableEnvironmentImpl.executeInternal(TableEnvironmentImpl.java:850)
	... 4 more
Caused by: java.lang.RuntimeException: org.apache.flink.runtime.client.JobInitializationException: Could not start the JobMaster.
	at org.apache.flink.util.ExceptionUtils.rethrow(ExceptionUtils.java:321)
	at org.apache.flink.util.function.FunctionUtils.lambda$uncheckedFunction$2(FunctionUtils.java:75)
	at java.util.concurrent.CompletableFuture.uniApply(CompletableFuture.java:616)
	at java.util.concurrent.CompletableFuture$UniApply.tryFire(CompletableFuture.java:591)
	at java.util.concurrent.CompletableFuture$Completion.exec(CompletableFuture.java:457)
	at java.util.concurrent.ForkJoinTask.doExec(ForkJoinTask.java:289)
	at java.util.concurrent.ForkJoinPool$WorkQueue.runTask(ForkJoinPool.java:1067)
	at java.util.concurrent.ForkJoinPool.runWorker(ForkJoinPool.java:1703)
	at java.util.concurrent.ForkJoinWorkerThread.run(ForkJoinWorkerThread.java:172)
Caused by: org.apache.flink.runtime.client.JobInitializationException: Could not start the JobMaster.
	at org.apache.flink.runtime.jobmaster.DefaultJobMasterServiceProcess.lambda$new$0(DefaultJobMasterServiceProcess.java:97)
	at java.util.concurrent.CompletableFuture.uniWhenComplete(CompletableFuture.java:774)
	at java.util.concurrent.CompletableFuture$UniWhenComplete.tryFire(CompletableFuture.java:750)
	at java.util.concurrent.CompletableFuture.postComplete(CompletableFuture.java:488)
	at java.util.concurrent.CompletableFuture$AsyncSupply.run(CompletableFuture.java:1609)
	at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149)
	at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
	at java.lang.Thread.run(Thread.java:750)
Caused by: java.util.concurrent.CompletionException: java.lang.RuntimeException: org.apache.flink.runtime.JobException: Cannot instantiate the coordinator for operator Source: source_test[1] -> DropUpdateBefore[2] -> ConstraintEnforcer[3] -> Sink: sink_test[3]
	at java.util.concurrent.CompletableFuture.encodeThrowable(CompletableFuture.java:273)
	at java.util.concurrent.CompletableFuture.completeThrowable(CompletableFuture.java:280)
	at java.util.concurrent.CompletableFuture$AsyncSupply.run(CompletableFuture.java:1606)
	... 3 more
Caused by: java.lang.RuntimeException: org.apache.flink.runtime.JobException: Cannot instantiate the coordinator for operator Source: source_test[1] -> DropUpdateBefore[2] -> ConstraintEnforcer[3] -> Sink: sink_test[3]
	at org.apache.flink.util.ExceptionUtils.rethrow(ExceptionUtils.java:321)
	at org.apache.flink.util.function.FunctionUtils.lambda$uncheckedSupplier$4(FunctionUtils.java:114)
	at java.util.concurrent.CompletableFuture$AsyncSupply.run(CompletableFuture.java:1604)
	... 3 more
Caused by: org.apache.flink.runtime.JobException: Cannot instantiate the coordinator for operator Source: source_test[1] -> DropUpdateBefore[2] -> ConstraintEnforcer[3] -> Sink: sink_test[3]
	at org.apache.flink.runtime.executiongraph.ExecutionJobVertex.initialize(ExecutionJobVertex.java:229)
	at org.apache.flink.runtime.executiongraph.DefaultExecutionGraph.initializeJobVertex(DefaultExecutionGraph.java:901)
	at org.apache.flink.runtime.executiongraph.DefaultExecutionGraph.initializeJobVertices(DefaultExecutionGraph.java:891)
	at org.apache.flink.runtime.executiongraph.DefaultExecutionGraph.attachJobGraph(DefaultExecutionGraph.java:848)
	at org.apache.flink.runtime.executiongraph.DefaultExecutionGraph.attachJobGraph(DefaultExecutionGraph.java:830)
	at org.apache.flink.runtime.executiongraph.DefaultExecutionGraphBuilder.buildGraph(DefaultExecutionGraphBuilder.java:203)
	at org.apache.flink.runtime.scheduler.DefaultExecutionGraphFactory.createAndRestoreExecutionGraph(DefaultExecutionGraphFactory.java:156)
	at org.apache.flink.runtime.scheduler.SchedulerBase.createAndRestoreExecutionGraph(SchedulerBase.java:361)
	at org.apache.flink.runtime.scheduler.SchedulerBase.(SchedulerBase.java:206)
	at org.apache.flink.runtime.scheduler.DefaultScheduler.(DefaultScheduler.java:134)
	at org.apache.flink.runtime.scheduler.DefaultSchedulerFactory.createInstance(DefaultSchedulerFactory.java:152)
	at org.apache.flink.runtime.jobmaster.DefaultSlotPoolServiceSchedulerFactory.createScheduler(DefaultSlotPoolServiceSchedulerFactory.java:119)
	at org.apache.flink.runtime.jobmaster.JobMaster.createScheduler(JobMaster.java:369)
	at org.apache.flink.runtime.jobmaster.JobMaster.(JobMaster.java:346)
	at org.apache.flink.runtime.jobmaster.factories.DefaultJobMasterServiceFactory.internalCreateJobMasterService(DefaultJobMasterServiceFactory.java:123)
	at org.apache.flink.runtime.jobmaster.factories.DefaultJobMasterServiceFactory.lambda$createJobMasterService$0(DefaultJobMasterServiceFactory.java:95)
	at org.apache.flink.util.function.FunctionUtils.lambda$uncheckedSupplier$4(FunctionUtils.java:112)
	... 4 more
Caused by: java.io.StreamCorruptedException: unexpected block data
	at java.io.ObjectInputStream.readObject0(ObjectInputStream.java:1685)
	at java.io.ObjectInputStream.defaultReadFields(ObjectInputStream.java:2430)
	at java.io.ObjectInputStream.readSerialData(ObjectInputStream.java:2310)
	at java.io.ObjectInputStream.readOrdinaryObject(ObjectInputStream.java:2212)
	at java.io.ObjectInputStream.readObject0(ObjectInputStream.java:1668)
	at java.io.ObjectInputStream.defaultReadFields(ObjectInputStream.java:2430)
	at java.io.ObjectInputStream.readSerialData(ObjectInputStream.java:2310)
	at java.io.ObjectInputStream.readOrdinaryObject(ObjectInputStream.java:2212)
	at java.io.ObjectInputStream.readObject0(ObjectInputStream.java:1668)
	at java.io.ObjectInputStream.defaultReadFields(ObjectInputStream.java:2430)
	at java.io.ObjectInputStream.readSerialData(ObjectInputStream.java:2310)
	at java.io.ObjectInputStream.readOrdinaryObject(ObjectInputStream.java:2212)
	at java.io.ObjectInputStream.readObject0(ObjectInputStream.java:1668)
	at java.io.ObjectInputStream.defaultReadFields(ObjectInputStream.java:2430)
	at java.io.ObjectInputStream.readSerialData(ObjectInputStream.java:2354)
	at java.io.ObjectInputStream.readOrdinaryObject(ObjectInputStream.java:2212)
	at java.io.ObjectInputStream.readObject0(ObjectInputStream.java:1668)
	at java.io.ObjectInputStream.defaultReadFields(ObjectInputStream.java:2430)
	at java.io.ObjectInputStream.readSerialData(ObjectInputStream.java:2354)
	at java.io.ObjectInputStream.readOrdinaryObject(ObjectInputStream.java:2212)
	at java.io.ObjectInputStream.readObject0(ObjectInputStream.java:1668)
	at java.io.ObjectInputStream.readArray(ObjectInputStream.java:2118)
	at java.io.ObjectInputStream.readObject0(ObjectInputStream.java:1656)
	at java.io.ObjectInputStream.defaultReadFields(ObjectInputStream.java:2430)
	at java.io.ObjectInputStream.readSerialData(ObjectInputStream.java:2354)
	at java.io.ObjectInputStream.readOrdinaryObject(ObjectInputStream.java:2212)
	at java.io.ObjectInputStream.readObject0(ObjectInputStream.java:1668)
	at java.io.ObjectInputStream.defaultReadFields(ObjectInputStream.java:2430)
	at java.io.ObjectInputStream.readSerialData(ObjectInputStream.java:2354)
	at java.io.ObjectInputStream.readOrdinaryObject(ObjectInputStream.java:2212)
	at java.io.ObjectInputStream.readObject0(ObjectInputStream.java:1668)
	at java.io.ObjectInputStream.defaultReadFields(ObjectInputStream.java:2430)
	at java.io.ObjectInputStream.readSerialData(ObjectInputStream.java:2354)
	at java.io.ObjectInputStream.readOrdinaryObject(ObjectInputStream.java:2212)
	at java.io.ObjectInputStream.readObject0(ObjectInputStream.java:1668)
	at java.io.ObjectInputStream.defaultReadFields(ObjectInputStream.java:2430)
	at java.io.ObjectInputStream.readSerialData(ObjectInputStream.java:2354)
	at java.io.ObjectInputStream.readOrdinaryObject(ObjectInputStream.java:2212)
	at java.io.ObjectInputStream.readObject0(ObjectInputStream.java:1668)
	at java.io.ObjectInputStream.defaultReadFields(ObjectInputStream.java:2430)
	at java.io.ObjectInputStream.readSerialData(ObjectInputStream.java:2354)
	at java.io.ObjectInputStream.readOrdinaryObject(ObjectInputStream.java:2212)
	at java.io.ObjectInputStream.readObject0(ObjectInputStream.java:1668)
	at java.io.ObjectInputStream.readObject(ObjectInputStream.java:502)
	at java.io.ObjectInputStream.readObject(ObjectInputStream.java:460)
	at org.apache.flink.util.InstantiationUtil.deserializeObject(InstantiationUtil.java:617)
	at org.apache.flink.util.InstantiationUtil.deserializeObject(InstantiationUtil.java:602)
	at org.apache.flink.util.InstantiationUtil.deserializeObject(InstantiationUtil.java:589)
	at org.apache.flink.util.SerializedValue.deserializeValue(SerializedValue.java:67)
	at org.apache.flink.runtime.operators.coordination.OperatorCoordinatorHolder.create(OperatorCoordinatorHolder.java:488)
	at org.apache.flink.runtime.executiongraph.ExecutionJobVertex.createOperatorCoordinatorHolder(ExecutionJobVertex.java:286)
	at org.apache.flink.runtime.executiongraph.ExecutionJobVertex.initialize(ExecutionJobVertex.java:223)
	... 20 more
Process finished with exit code 1

上一篇：mysql登录报错：mysql: [Warning] Using a password on the command line interface can be insecure.ERROR 10

下一篇：一文吃透 SpringMVC 中的转发和重定向

网站优化运营
整站seo优化
网络营销运营
成功案例
品牌创意网站
营销型网站
小程序
微信小程序
微信公众号
百度熊掌号
网站优化分享
关于我们
公司概况
公司新闻
公司文化
结构体系
企业资质
加入我们
关注我们
扫描二维码
获取更多信息
精彩一手掌握
Copyright © 2014-2019 seo,上海网站优化_网络制作_网站seo排名_网站建设推广_上海网络公司 版权所有 沪ICP备19022315号
